Name: Autel MaxiIM IM608ProⅡ/IM608SⅡ/IM608Ⅱ - Fututre Motive
Brand: Autel
Price: 2780.00 USD
Availability: InStock

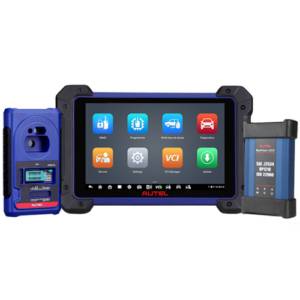

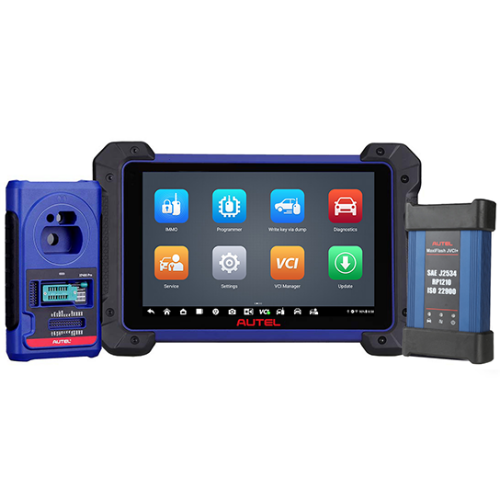

Autel MaxiIM IM608ProⅡ/IM608SⅡ/IM608Ⅱ

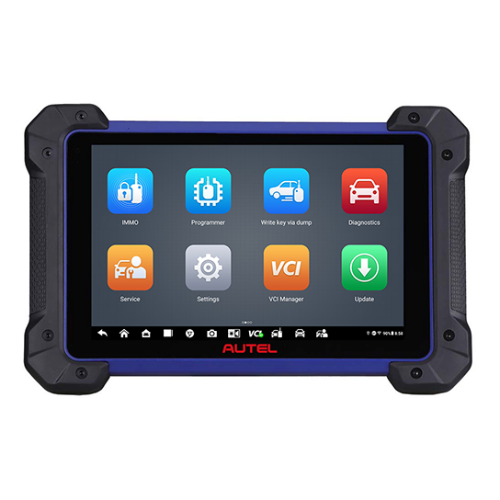

IM608ProⅡ/IM608SⅡ/IM608Ⅱ is a 10.1-inch, Android-based touchscreen tablet with advanced key and immobilizer programming capabilities, comprehensive diagnostic features, functions and tests, and an extensive service menu. The IM608PROII excels in key programming, supporting OBD key programming for 80% of the vehicles on the road today. Equipped with Autel’s Remote Expert feature, users can connect remotely with experienced experts ready to assist with any diagnostic problem directly from their tablet.Additional key and immobilizer functions include Key generation, key and remote learning, immobilizer reset, refresh, and coding, and transponder and EEPROM/MCU read and write. Installed with a fast octa-core processor, the IM608ProⅡ provides you with all special functions to quickly diagnose all system modules for the majority of vehicle makes and models. The tablet offers an extensive service menu, including the 40 most common maintenance tasks and cloud-based report sharing.

Note:

Remote expert is not available in the North American region;
Specific models may vary by region.
MaxiIM IM608ProⅡ/IM608SⅡ/IM608Ⅱ is specifically designed for legal automotive repairs. This requires users to have legitimate access to the vehicle, either by legally having the vehicle key, or having the vehicle owner’s permission using the key.

Highlights

Smart Mode for guided and automated key learning
Expert Mode for advanced key learning
Read PIN/CS (all keys lost) , key generation, key learning, remote learning
IMMO ECU reset/adaptation, refresh/coding
Transpronder read/write, EEPROM/MCU read/write
Advanced, OE-Level Diagnostics for U.S., Asian, and European vehicles
Extensive maintenance/services menu, including direct-access to EPB, DPF, SAS, Oil Reset, and BMS functions
Equipped with Autel Remote Expert capbility. Connect remotely with experienced experts ready to assist you with any diagnostic problem
All maintenance reports stored in the cloud, allowing you to view device and test records anytime, anywhere
Qualcomm Octa-core Processor (2.2GHz)
10.1-inch LCD touchscreen with 1920 x 1200 resolution
128GB Storage Memory
Android 10 Operating System for fast boot-up and multitasking

Specifications

Operating System	Android 10
Processor	Qualcomm SDM660 Octa-core Processor (2.2GHz )
Memory	4GB RAM &128GB On-board Memory
Display	10.1-inch LED capacitive touchscreen with 1920×1200 resolution
Connectivity	Wi-Fi（802.11a/b/g/n/ac）
	USB 2.0
	SD Card (Support up to 64GB)
Sensors	Light sensor for brightness auto adjust
Power and Battery	15000 mAh 3.8 V lithium-polymer battery Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
Input Voltage	12V (9-24 V)
Power Consumption	6.5W
Operating Temp	0 to 50°C (32 to 122°F)
Storage Temp	-20 to 60°C (-4 to 140°F)
Dimensions(WXHX D)	300 mm (11.81”) x 220 mm (8.66”) x 50 mm (1.97”)
Weight	NW: 1.58 kg (3.48 lb.)
Protocols	ISO 9142-2, ISO 14230-2, ISO 15765-4, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850 PWM, CAN ISO 11898, Highspeed, Middlespeed, Lowspeed and Singlewire CAN, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP 2.0, TP 1.6, SAE J1939, SAE J1708, Fault-Tolerant CAN

Comparison

	IM508	IM508S	IM608 PRO	IM608ProⅡ/IM608SⅡ/IM608Ⅱ
Features
Processor	Quad-core	Quad-core	Hexa-core	Octa-core
Touchscreen	7-inch	7-inch	10.1-inch	10.1-inch
Resolution	1024×600	1024×600	1920×1200	1920×1200
Memory	32GB	64GB	64GB	128GB
Rechargeable Li-ion Battery	5000 mAh	5000 mAh	15000 mAh	15000 mAh
Internet Updatable	Wi-Fi	Wi-Fi	Wi-Fi	Wi-Fi
Camera	NO	NO	8.0 Megapixel	16.0 Megapixel
Connection	OBD Cable	OBD Cable	JVCI	JVCI+
Programmer	XP200	XP200	XP400PRO	XP400PRO
Weight	0.78 kg	0.78 kg	1.48 kg	1.58 kg
Remote Expert	NO	NO	NO	Advanced
Device/Report Management	Yes	Yes	Yes	Yes
Programmer Function (Note: requires the use of the XP400 PRO and applicable accessory)
Reading/Writing EEPROM	Yes	Yes	Yes	Yes
Reading/Writing MCU	Yes	Yes	Yes	Yes
Reading/Writing Engine ECU	Yes	Yes	Yes	Yes
Reading/Writing IMMO ECU	Yes	Yes	Yes	Yes
Universal Key Information Detection	Yes	Yes	Yes	Yes
Write key to ECU by programmer	Yes	Yes	Yes	Yes
Key Unlocking	Yes	Yes	Yes	Yes
Frequency Detection	Yes	Yes	Yes	Yes
Keytool Functions
Universal key generation	Yes	Yes	Yes	Yes
Chip Simulation (Requires the use of the Autel APB112)	Yes	Yes	Yes	Yes
Diagnostic Functions
Auto VIN	Yes	Yes	Yes	Yes
Reading/Erasing codes	Yes	Yes	Yes	Yes
Read Live Data	Yes	Yes	Yes	Yes
Read Freeze Data	Yes	Yes	Yes	Yes
Read ECU information	Yes	Yes	Yes	Yes
Active Test	Yes	Yes	Yes	Yes
Service Function	Yes（40+service functions）	Yes（40+service functions）	Yes（40+service functions）	Yes 40+service functions）
Special Function	Yes	Yes	Yes	Yes
Online Coding	No	No	Yes (Mercedes-Benz vehicles are not covered)	Yes (Mercedes-Benz vehicles are not covered)
Offline Coding	No	No	Yes	Yes
Hidden Function	No	No	Yes. (Mercedes-Benz vehicles are not covered)	Yes. (Mercedes-Benz vehicles are not covered)
Guided Function	No	No	Yes. (Mercedes, BMW, JLR vehicles are not covered))	Yes. (Mercedes, BMW, JLR vehicles are not covered)
Offline Programming	No	No	Yes	Yes
Cloud Service	Report Management	Report Management	Report Management	Report Management
Other	Remote Desk CANFD（Adapters required）	Remote Desk CANFD（Adapters required）	Remote Desk DoIP（Adapters required） CANFD（Adapters required）	SCAN VIN SCAN License Remote Desk DoIP CANFD

Note: XP400 Pro can be purchased separately.

Some listed functions are manufacture dependent. Constantly update MaxiIM for current vehicle coverage. Update software on a regular basis to get the latest tool features.

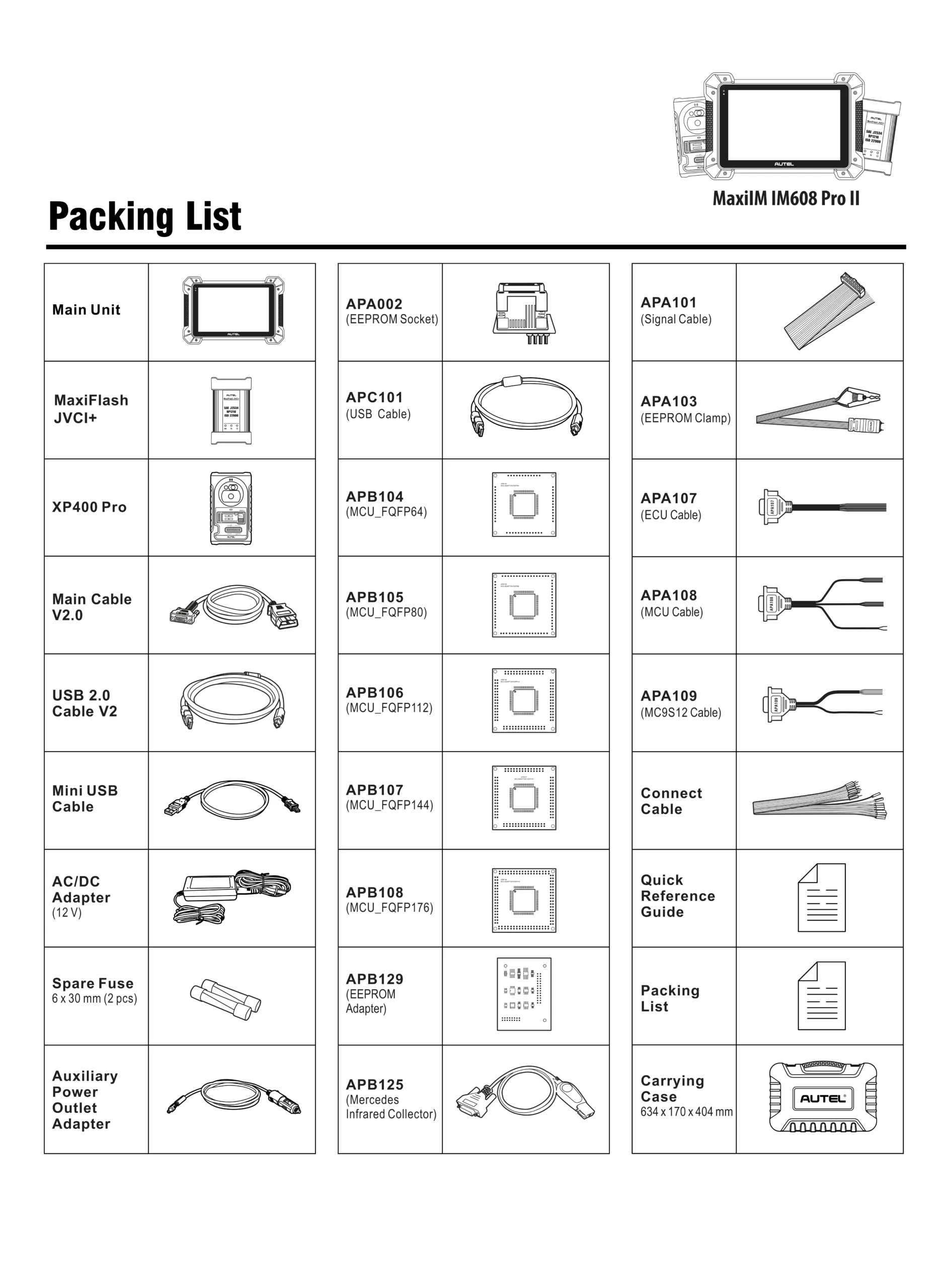

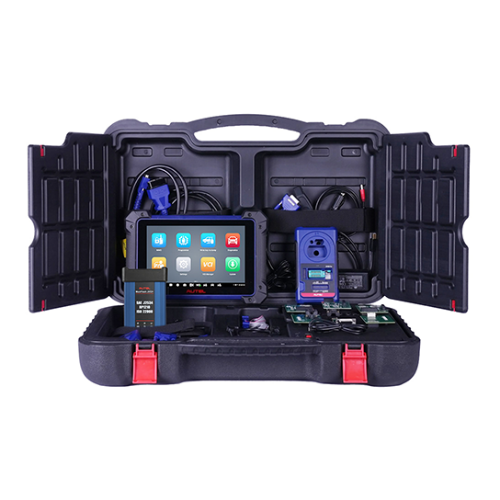

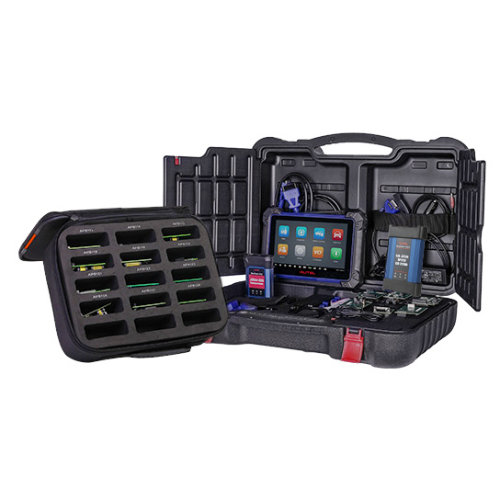

Package Contents
