Highlights
- High resolution images and videos (1920 x 1080)

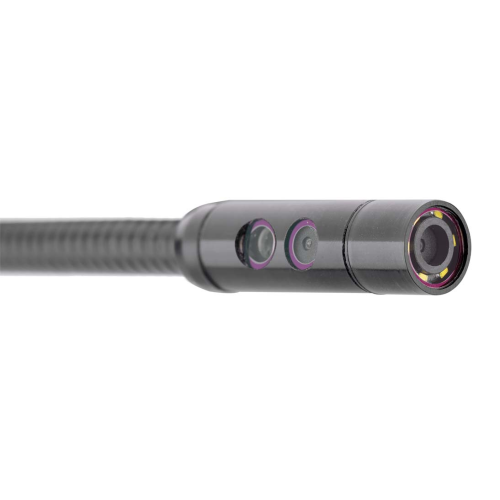

- Dual front and side cameras for wider viewing angle
- 4.1-inch full color LCD display (1200 x 720)
- 1-button quick image capture and video recording
- 70-degree field of view for expanded viewing angle
- Adds audio annotation for detailed review
- Micro HDMI-output enables streaming to larger monitors
- Freeze-frame camera stills or video recording
- On-screen horizontal/vertical reverse
- Records and plays back images and video clips
- 7X digital zoom for increased viewing
- 8GB Micro SD card (included), supports up to 128GB
- Mini-USB cable (included) for uploading images and videos
- More than 10,000 lux, adjustable 10-level LED illumination
- Flashlight for higher visibility in low-light environment
- Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use
- 1m (39.4″) semi-rigid, flexible watertight cable
- Includes magnet and hook cable accessories
- 8.5mm (0.33’’) probe fits most spark plug holes
- Compatible with 5.5mm (0.22’’) camera head (not included)
Specifications
| Recommended use | Indoor |
| Optimal viewing Distance | 0.79″ to 2″ (2 cm to 5 cm) |
| Image capture | JPG images (1920 x 1080 pixels) MP4 videos (1920 x 1080 pixels) |
| Screen type display | 4.1″ TFT LCD |
| Display resolution | 1200 x 720 pixels |
| Power supply | Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh) |
| Tested battery life | Approximately 4 hours of continuous use |
| Dimensions | 243 x 116 x 122mm (9.6″ x 4.6″ x 4.8″) |
| Weight | 0.422 kg (0.93lbs) |
| Recording medium | Micro SD card (8GB Standard/128GB Max) |
| Image controls | Zoom, low light vision |
| Lighting | Fully adjustable LED, Flashlight |
| Cable reach | 1m (39.4″) |
| Imager heads | 8.5mm (0.33″), 2 megapixel (1920 x 1080 pixels) |
| Waterproof | To a depth of 1m (39.4″) (Imager heads and cable only) |
| Additional ports | TF, Mini USB, Micro HDMI |
| Operating temp | Main unit: 14°F to 122°F (-10°C to 50°C) Cable: 14°F to 140°F (-10°C to 60°C) |
| Storage temp | -4°F to 158°F (-20°C to 70°C) |
| Operating humidity | 5% – 95% non-condensing |
Comparison
| MaxiVideo MV400 | MaxiVideo MV500 | MaxiVideo MV480 | MaxiVideo MV460 | MaxiVideo MV160 | |
| High resolution and full color digital LCD display | 3.5″ (320×240) | 5” (1280×720) | 4.1″ (1200×720) | 3.5” (640 x 480) | Smartphone-based |
| Record and play back high resolution still images and videos | 640×480 | 1280×720 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Wireless monitor enables remote viewing | — | ✓ | — | — | — |
| Touchscreen for convenient operation | — | ✓ | — | — | — |
| Single button for quick photo and video recording | — | — | ✓ | ✓ | ✓ |
| Add audio annotation for detail presentation | — | ✓ | ✓ | — | ✓ |
| On-screen photo editing and markup | — | ✓ | — | — | ✓ |
| Dual cameras see straight ahead or at a 90° angle | — | ✓ | ✓ | — | — |
| Digital zoom for detailed viewing | 5× | 5× | 7× | 7× | 7× |
| View objects as close as 1″ | ✓ | ✓ | ✓ | ✓ | ✓ |
| BOn-screen horizontal/vertical reverse | ✓ | ✓ | ✓ | ✓ | ✓ |
| On-screen 90° clockwise rotation | — | ✓ | ✓ | ✓ | ✓ |
| Built-in & adjustable LED illuminates viewing area | ✓ | ✓ | ✓ | ✓ | ✓ |
| HDMI port for monitor view | — | ✓ | ✓ | ✓ | — |
| Mini USB connector for uploading images and videos | ✓ | ✓ | ✓ | ✓ | — |
| 1 m long semi-rigid flexible watertight shaft | ✓ | ✓ | ✓ | ✓ | ✓ |
| Narrow probe diameter available in both 5.5 mm and 8.5 mm | ✓ | 8.5 mm | 8.5mm (5.5mm Optional) | 8.5mm (5.5mm Optional) | 8.5mm (5.5mm Optional) |
| Micro SD card slot for greater memory capacity | ✓ | ✓ | ✓ | ✓ | — |
| Oil and scratch resistant tempered glass lens | ✓ | ✓ | ✓ | ✓ | ✓ |
| Ergonomic and durable tool housing | ✓ | ✓ | ✓ | ✓ | ✓ |
| Built-in rechargeable Li-ion battery | ✓ | ✓ | ✓ | ✓ | ✓ |
| Multilingual support | ✓ | ✓ | ✓ | ✓ | ✓ |
| Water Resistant Camera head | ✓ | ✓ | ✓ | ✓ | ✓ |
