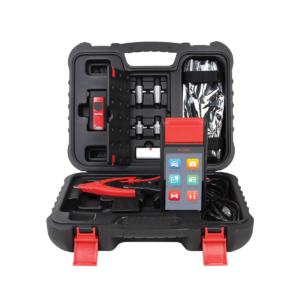

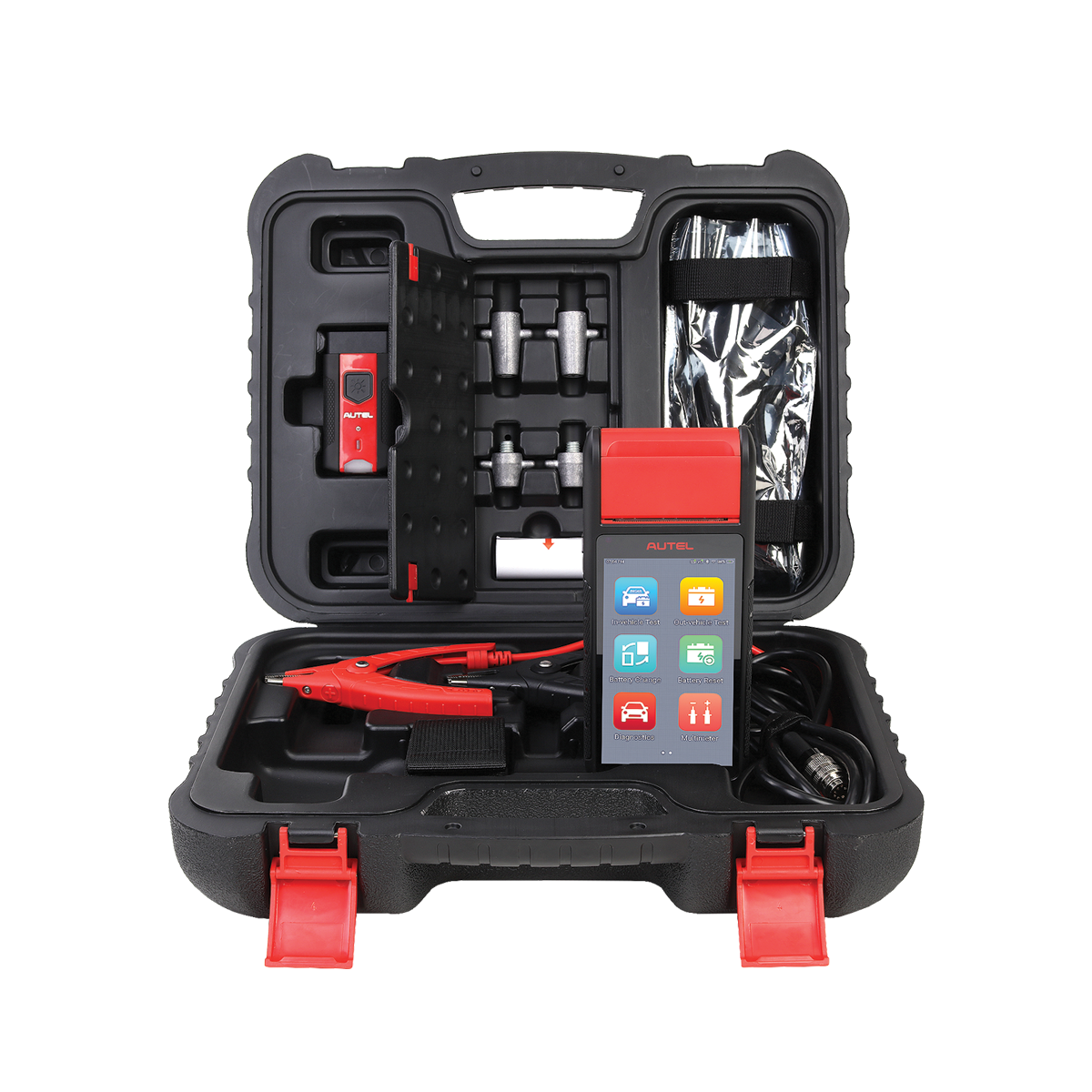

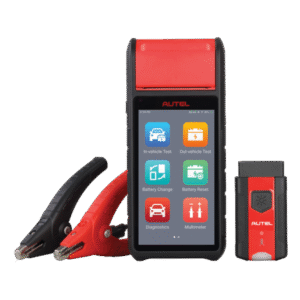

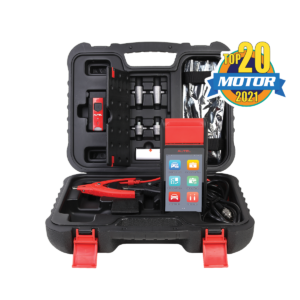

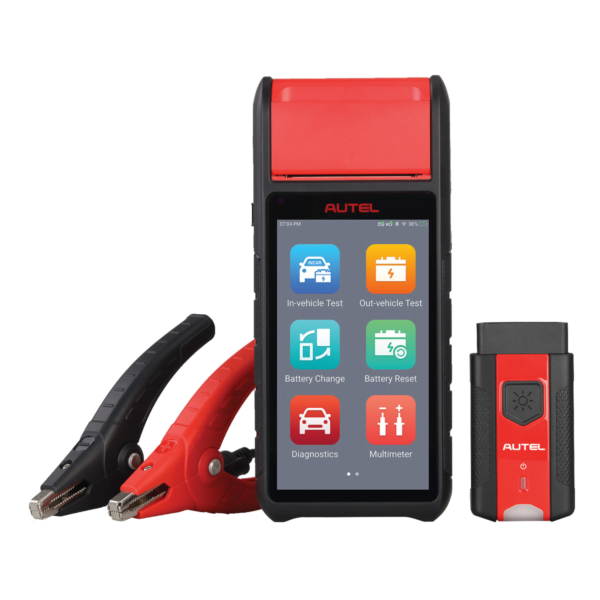

Autel MaxiBAS BT608 Battery and Electrical System Diagnostics Tool

The BT608 is a touchscreen Battery & Electrical System analyzer that applies Adaptive Conductance, an advanced battery analysis method that produces a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The BT608 can display a quick health status of the existing battery, register a new battery and perform advanced battery and electrical system diagnostics. The BT608’s VINscan function enables quick identification of the vehicle and battery specifications. Read/Clear codes on all available vehicles systems. Print or share customized reports via Wi-Fi or print test reports via the built-in thermal printer.

Highlights

Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
Test 12-volt batteries: 100 – 3000 CCA
Test 12-volt cranking/charging systems
Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
One-touch Battery registration
Quick display of battery specifications through battery barcode scan, Auto and manual VIN entry
Illustration instruction guides for battery positioning and testing

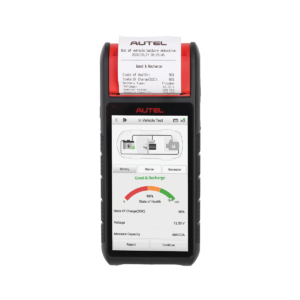

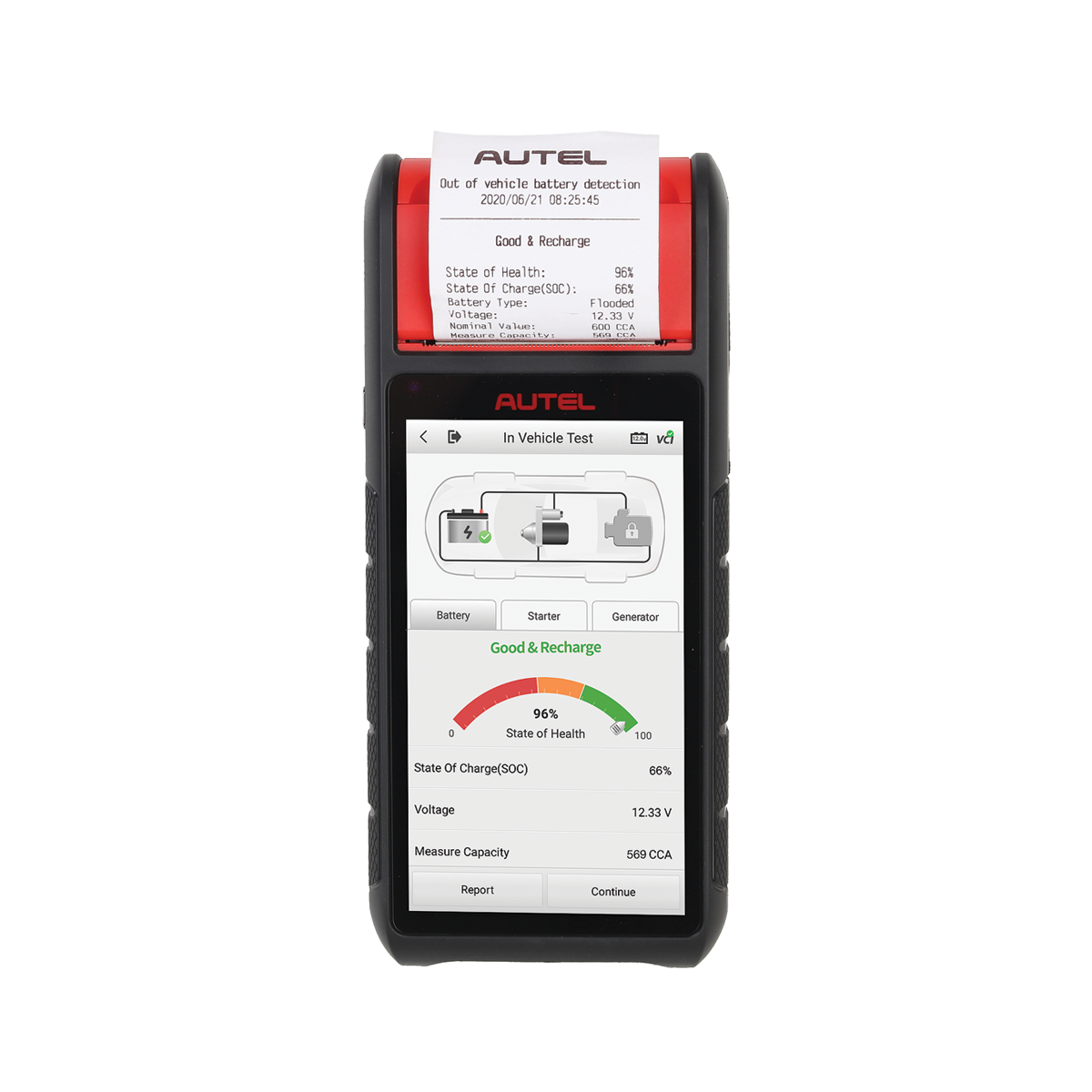

Print test reports via built-in thermal printer
Read and erase codes of all available systems

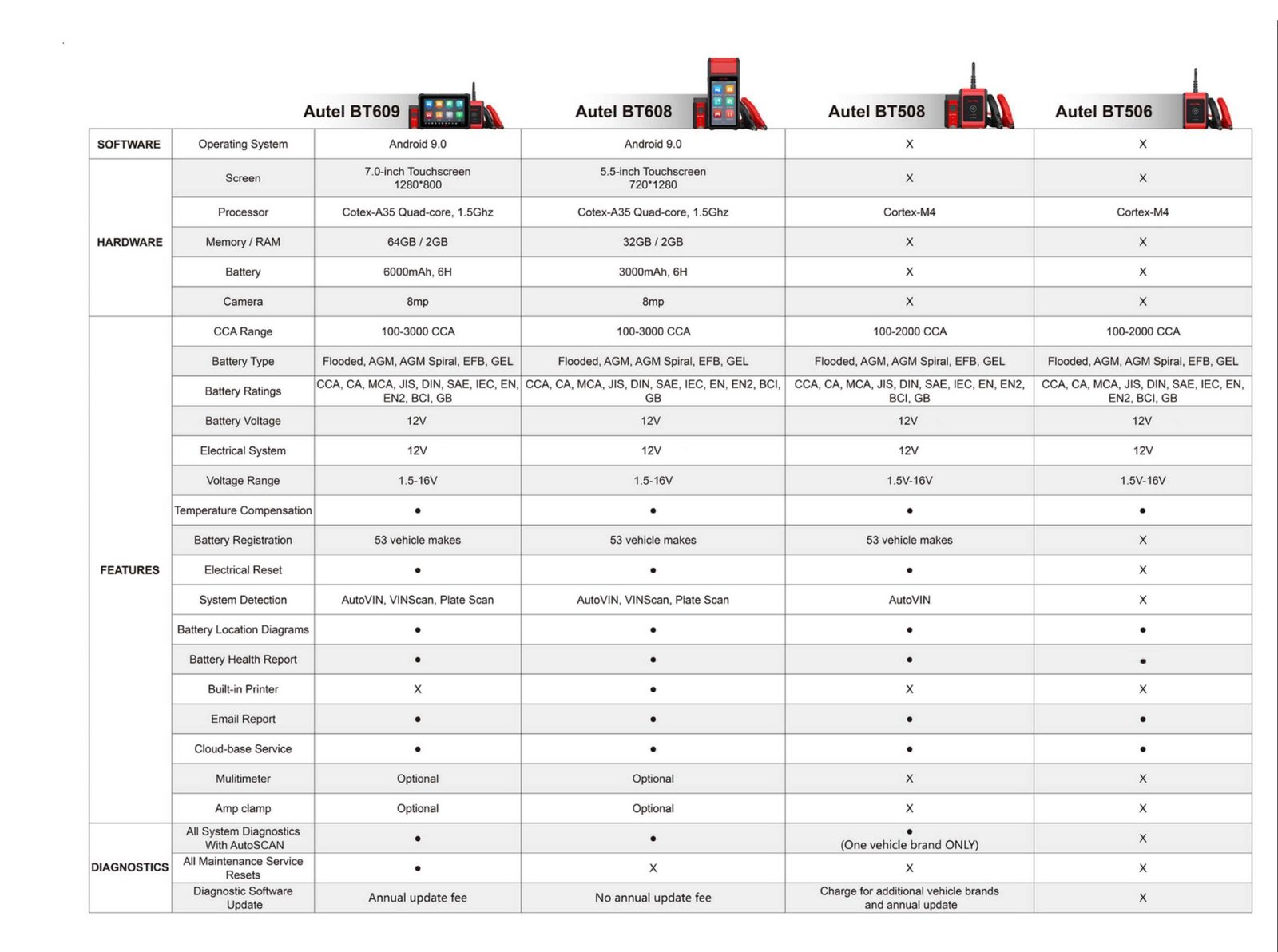

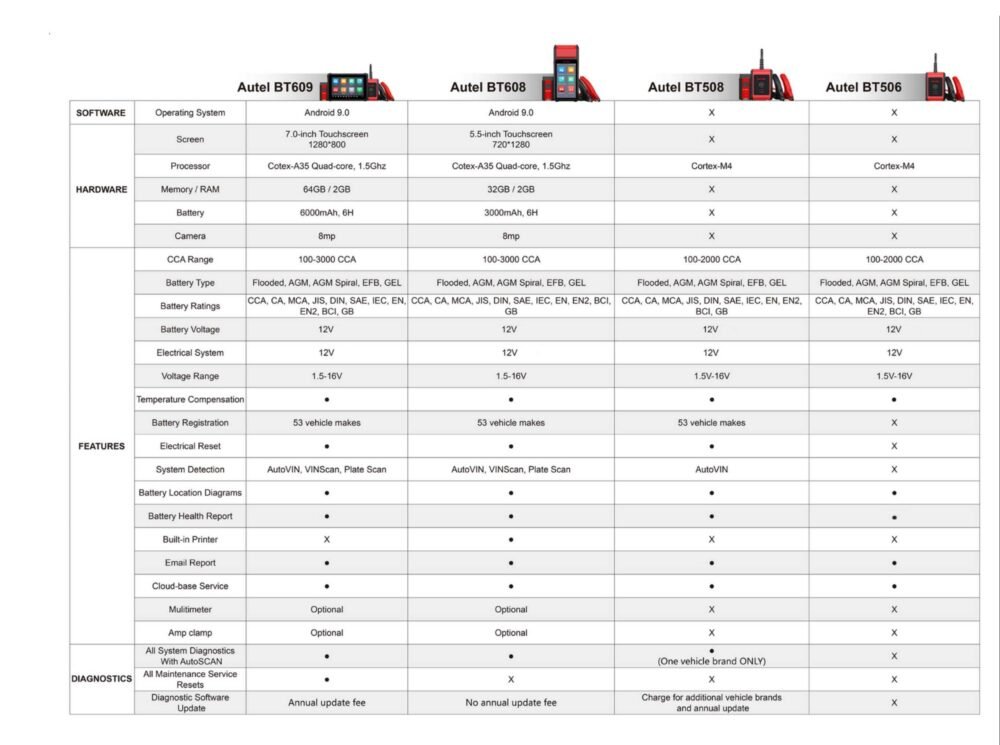

Specifications

Item	Description
Operating System	Android 9.0
Screen Display	5.5” LCD touch screen with 720*1280 resolution
Storage	32 GB
Connectivity	Wi-Fi (802.11 a/b/g/n/ac)
	USB 2.0 , Type C
	BT5.0+EDR
Camera	8 Megapixel
Input Voltage	5V DC
Working Current	< 450 mA at 7.7 V DC
Internal Battery	7.7 V, 3000 mAh
CCA Range	100 to 3000 A
Voltage Range	1.5 to 16V
Working Temperature	0° to 50° C (32° to 122° F )
Storage Temperature	-10° to 60° C (14° to 140° F )
Dimension (L x W x H)	204 mm (8.03”) x 90 mm (3.54”) x 32 mm (1.25”)
Weight	510 g (1.12 lb.)
