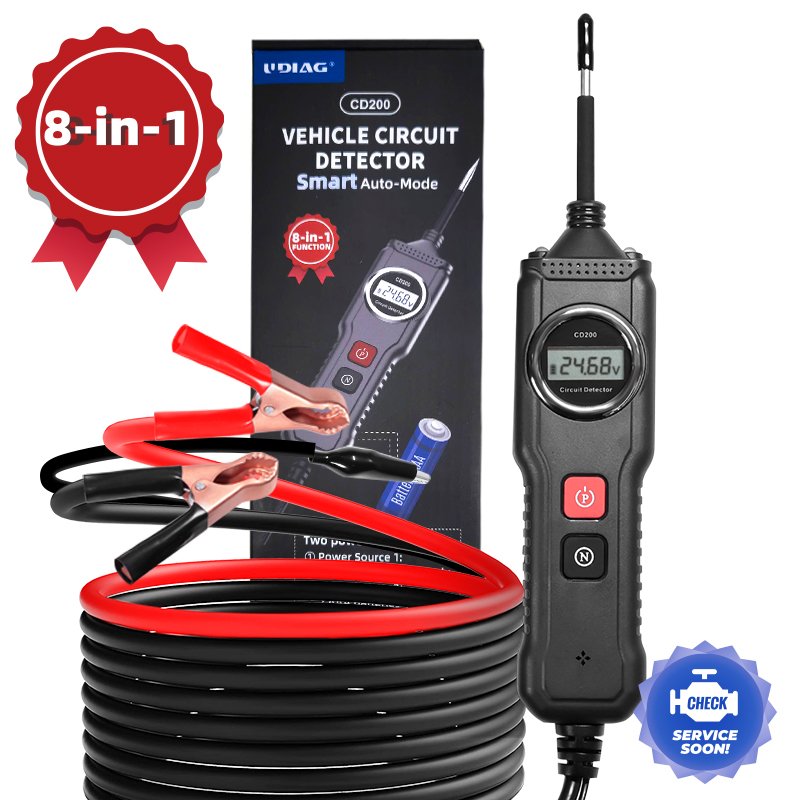

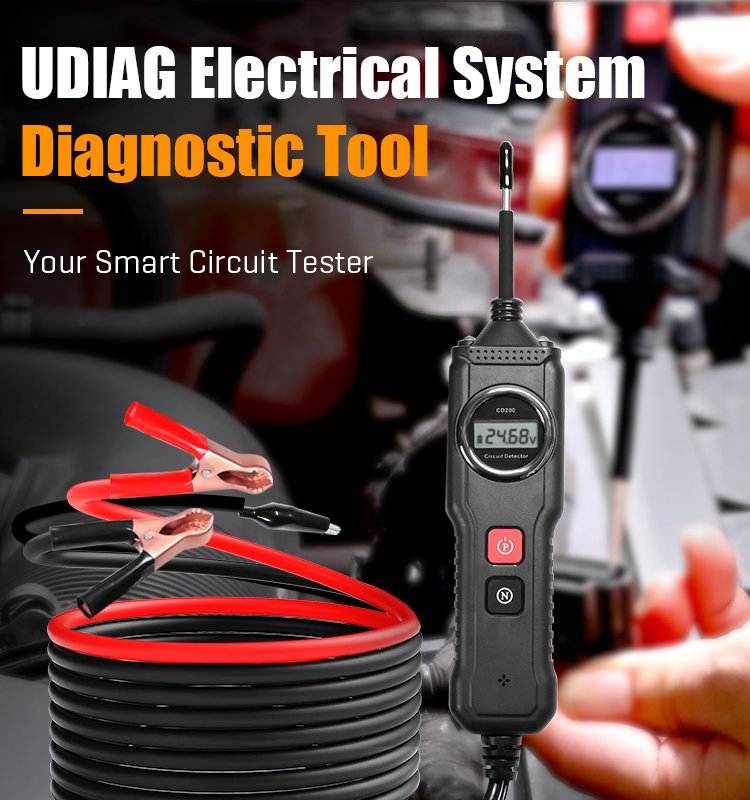

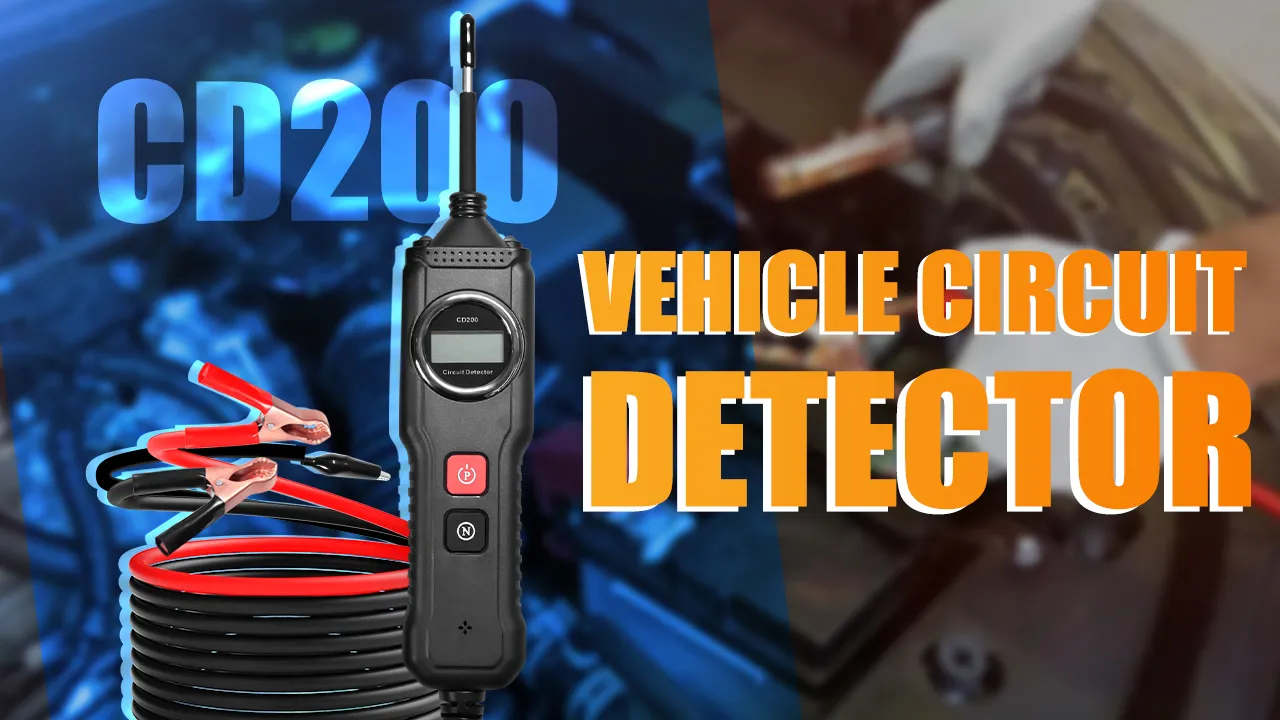

The UDIAG CD200 vehicle circuit detector is a professional-grade electrical diagnostic tool. It is suitable for diagnosing circuits with 6-40V power supply. It has a compact design and strong functionality, with reverse polarity and overload protection. This tool’s probe can be used for circuit continuity testing, voltage detection, polarity testing, and component activation. It can quickly detect short circuits, broken connections, or poor contact in vehicle electrical system components, assisting users in understanding the vehicle’s condition more quickly and accurately. It is a high-efficiency and advanced testing tool that can greatly improve user productivity.
Features
Voltage Detection
The automotive circuit tester can accurately measure voltage levels in circuits from 6V to 40V and is suitable for a variety of vehicle types.

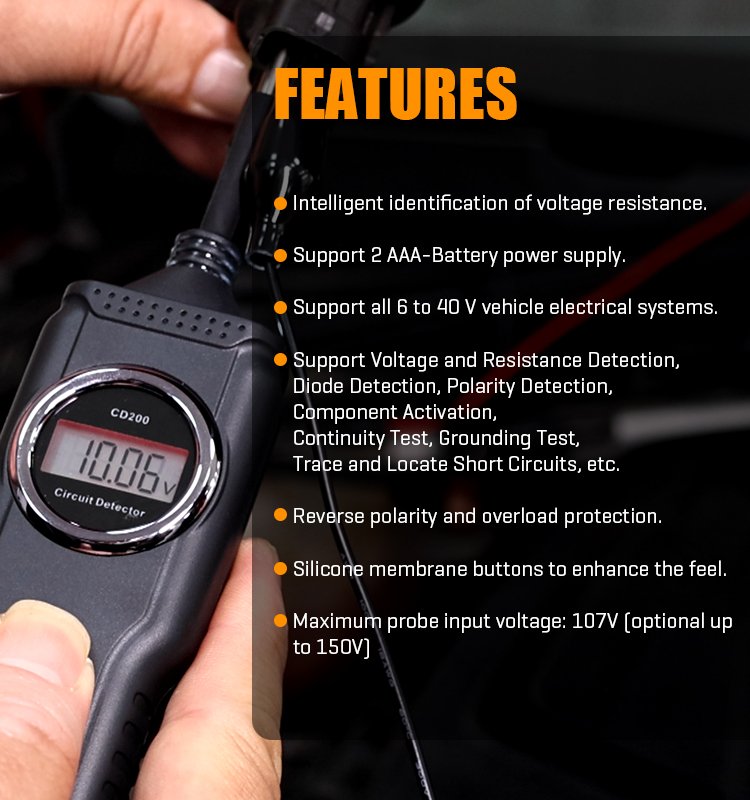

![This image highlights these features: - Intelligent identification of voltage resistance. - Supports 2 AAA-Battery power supply. - Supports all 6 to 40 V vehicle electrical systems. - Supports Voltage and Resistance Detection, Diode Detection, Polarity Detection, Component Activation, Continuity Test, Grounding Test, Trace and Locate Short Circuits, etc. - Reverse polarity and overload protection. - Silicone membrane buttons to enhance the feel. - Maximum probe input voltage: 107V [optional up to 150V.]](https://futuremotive.me/wp-content/uploads/2025/05/UDIAG-CD200-Vehicle-Circuit-Detector-Electrical-System-Diagnostic-Tool-description-graphic-2-Future-Motive.jpg)
Resistance Detection
The CD200 vehicle circuit detector can measure resistance values between 1 ohm and 100K ohms, which helps identify faulty components.
Diode Testing
The CD200 car electric circuit tester can evaluate the condition of diodes to ensure that the circuit is functioning properly.
Polarity Detection
This car circuit detector tool identifies positive and negative terminals, preventing potential reverse polarity issues.
Component Activation
Car circuit tester allows activation of components directly from the probe for functional testing.
Continuity Testing
Checks for open or closed circuits, ensuring proper electrical flow.
Grounding Test
Verifies the integrity of grounding connections within the electrical system.
Short Circuit Tracing
The vehicle circuit detector can effectively locate short circuits and facilitate quick diagnosis.
Overload Protection
Features built-in protection to prevent damage from excessive current.
Automatic Identification
Automatically detects voltage, resistance, and diode conditions, streamlining the diagnostic process.
Battery-Powered Operation
Operates using two built-in AAA batteries, eliminating the need for external power sources.
99% Vehicles Support
Cars, motorcycles, SUVs, buses, construction vehicles, pickups, off-road vehicles, yachts, etc.

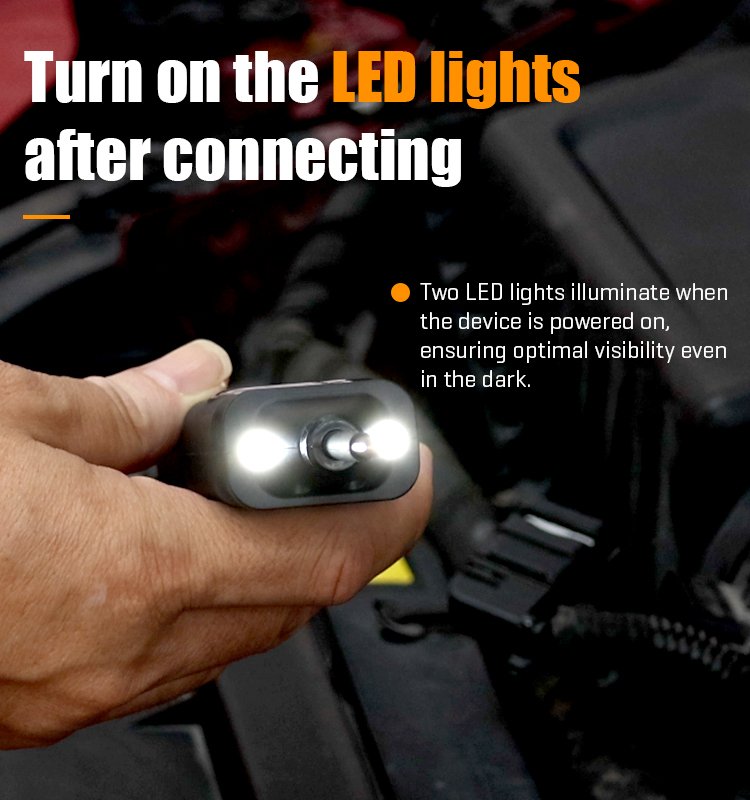

Built-in LED Light
Equipped with 2 LED flashlights, providing optimal visibility for detection in dark or dim environments.
Advantages
- Comprehensive Diagnostic Capabilities
- Wide Voltage Compatibility
- Intelligent Identification Capabilities
- Enhanced Safety Protections
- User-Friendly Design
- Portable and Convenient
Specifications
| Product Name | CD200 Vehicle Circuit Detector |

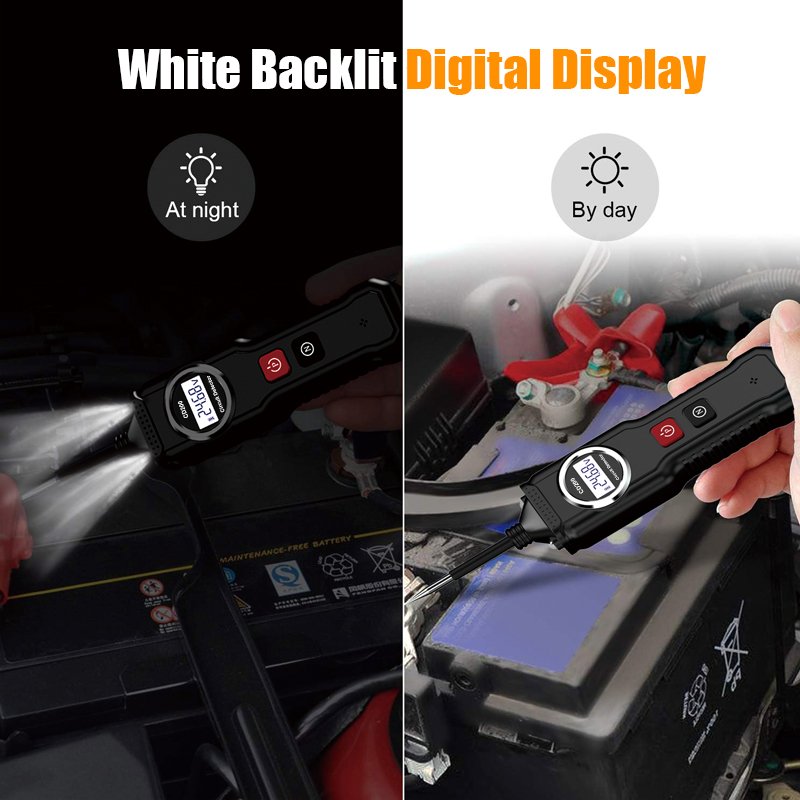

| Screen Display | LCD Digital Display |
| Working Voltage | 6-40V |
| Working Temperature | (-0 to 60°C) |
| Storage Temperature | (-40 to 70°C) |
| Power Supply | 12V/24V Vehicle Battery or 2* AAA Batteries |
| Resistance Measurement Range | 1 ohm – 100K ohm |

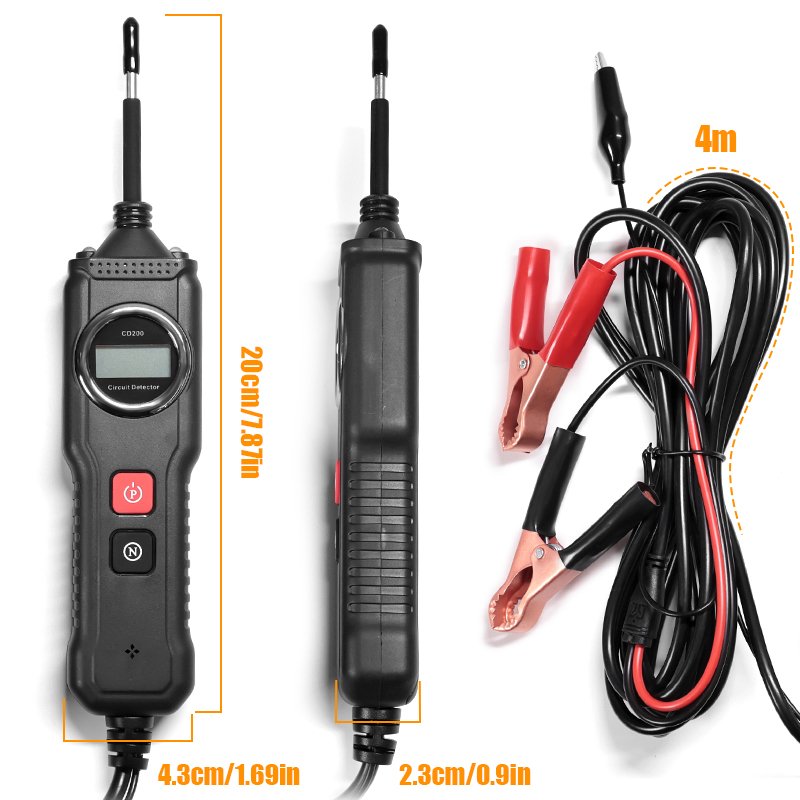

| Product Size | 210*42*20mm |
| Packaging Size | 25*9*5CM |
| Product Weight | 328g (Including the Package) |
Package Content
- 1x Dual-head power clip cable
- 1x Ground clip cable
- 1x Extension cable
- 1x Solid copper probe tip
- 1x Storage case
- 1x QC pass certificate
- 1x User manual
