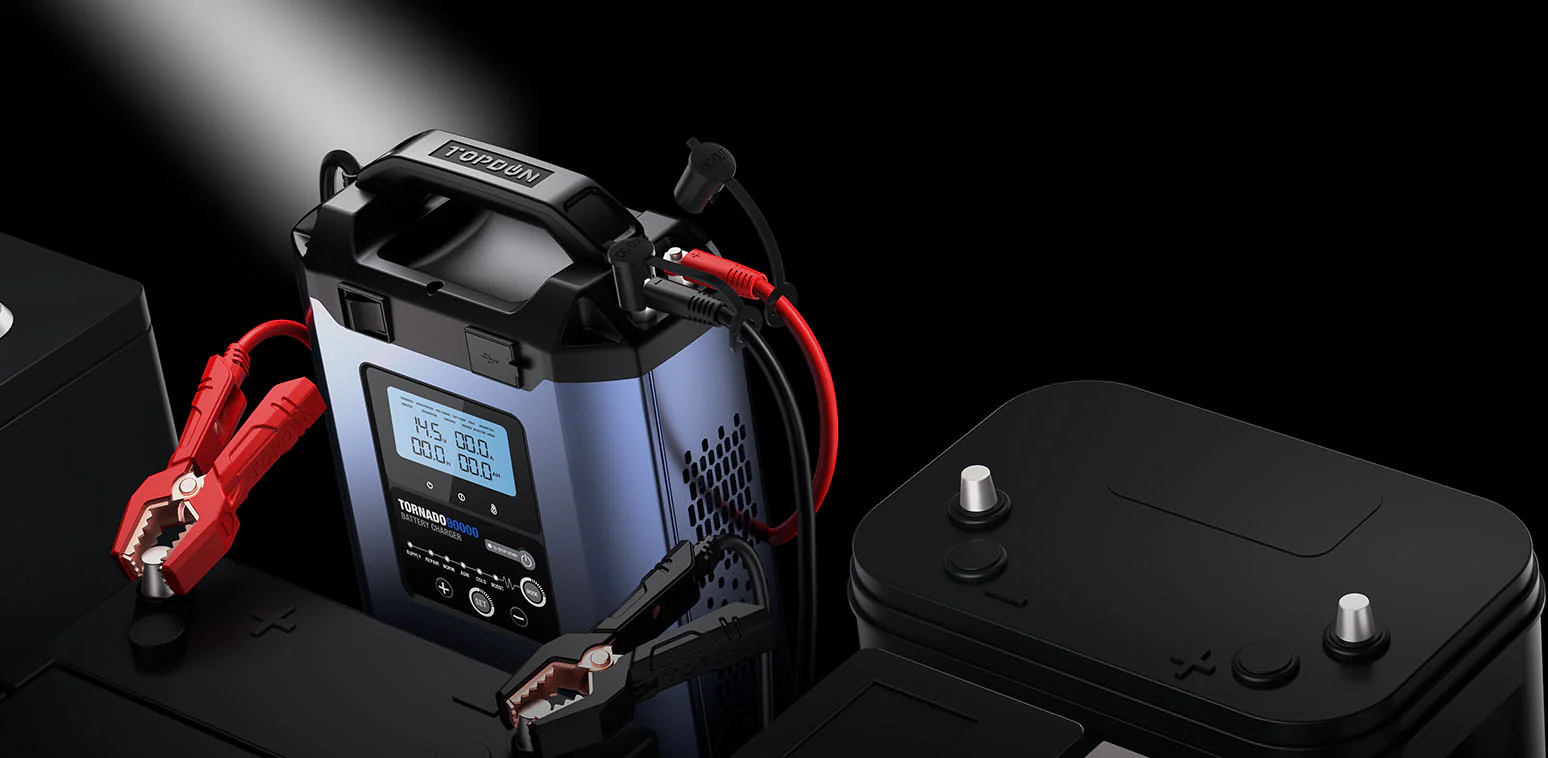

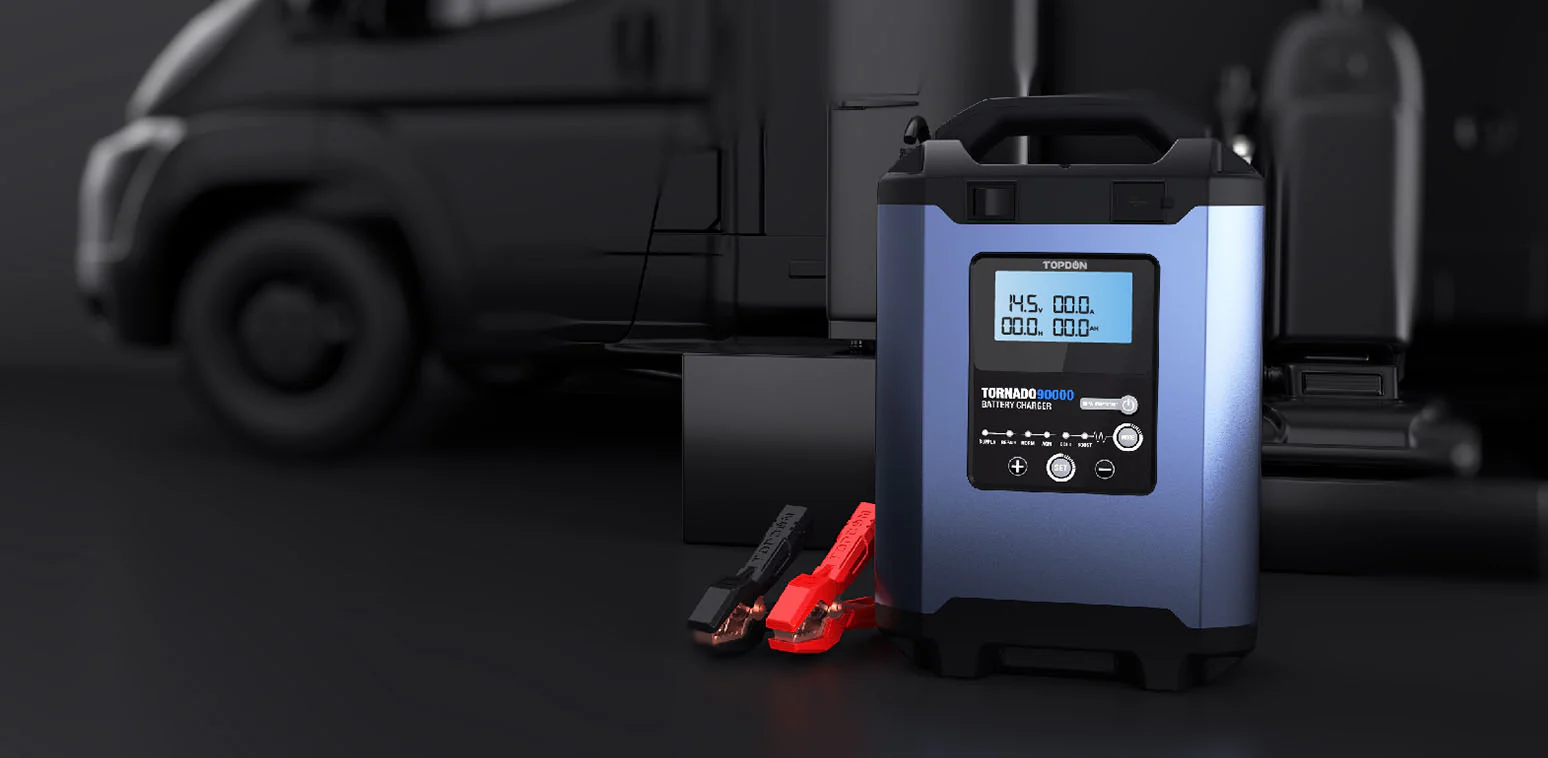

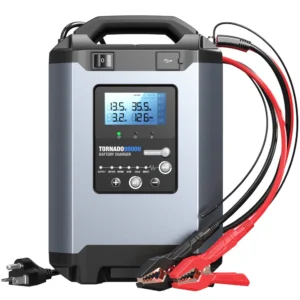

TOPDON Tornado90000

90A Stable Power Supply & Smart Charger 12V/24V

The Tornado90000 is TOPDON’s newest cutting-edge smart charger, made for professional and commercial users. This device is suitable for all types of 12V and 24V lead-acid and lithium batteries, with a wide battery capacity range from 5 to 90 amps.

The Tornado90000 features a current/voltage edit function and supplies users with the needed protection for batteries through its 9-step smart charging method and 6 charging modes. SUPPLY Mode provides a stable DC output and can be used as a programming voltage stabilizer.

WARNING: Cancer and Reproductive Harm! For more information go to www.P65Warnings.ca.gov

Features

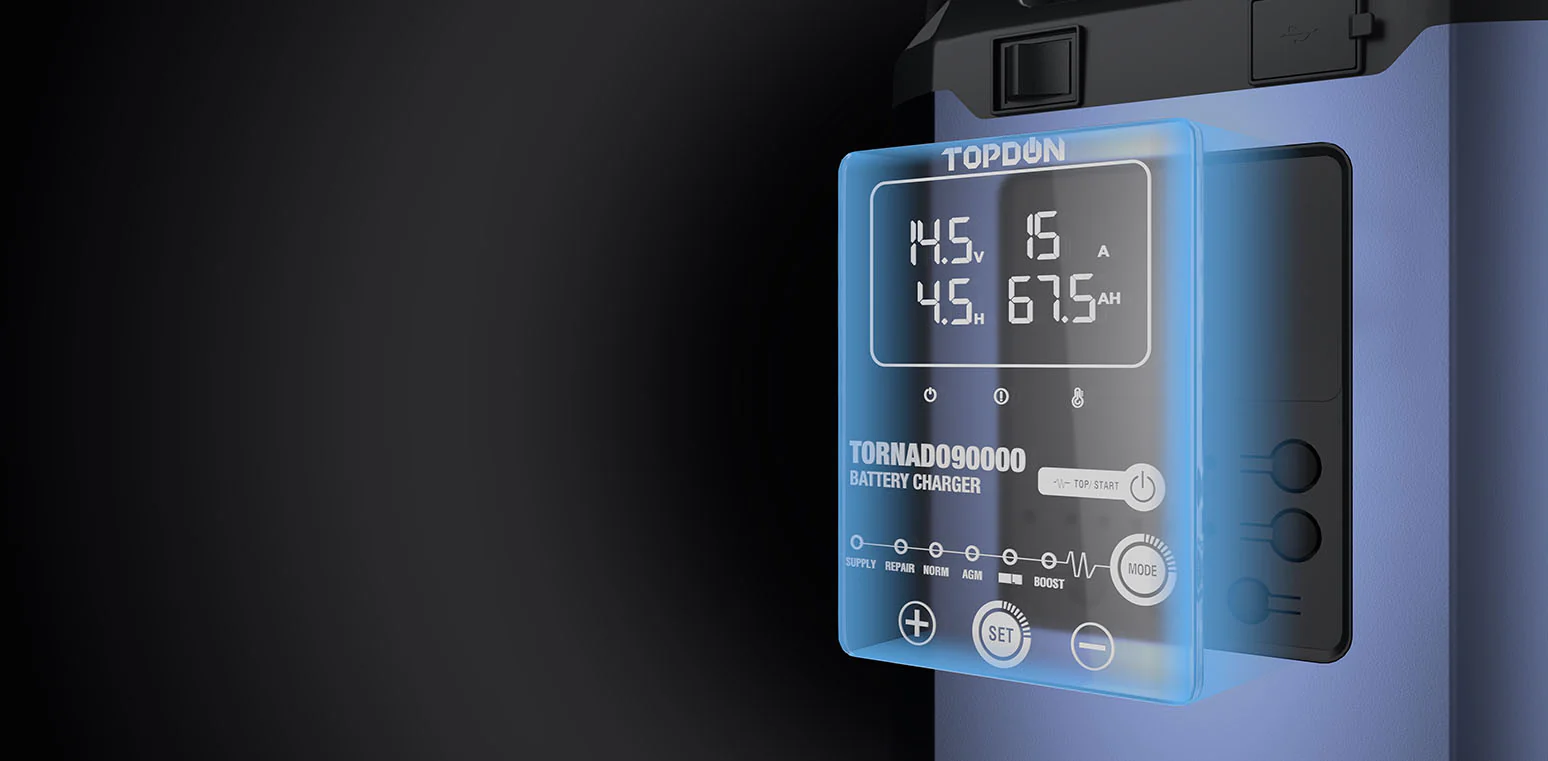

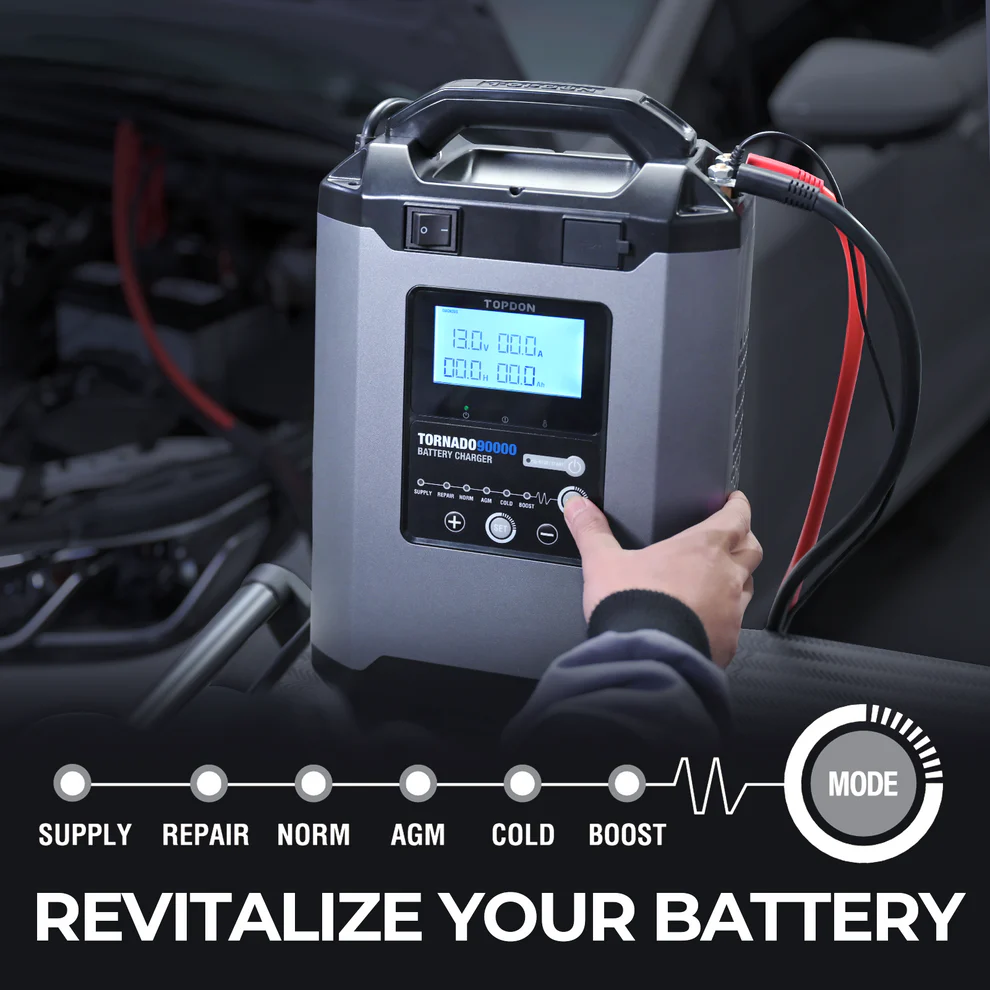

6 CHARGING MODES, ADJUSTABLE CURRENT AND VOLTAGE

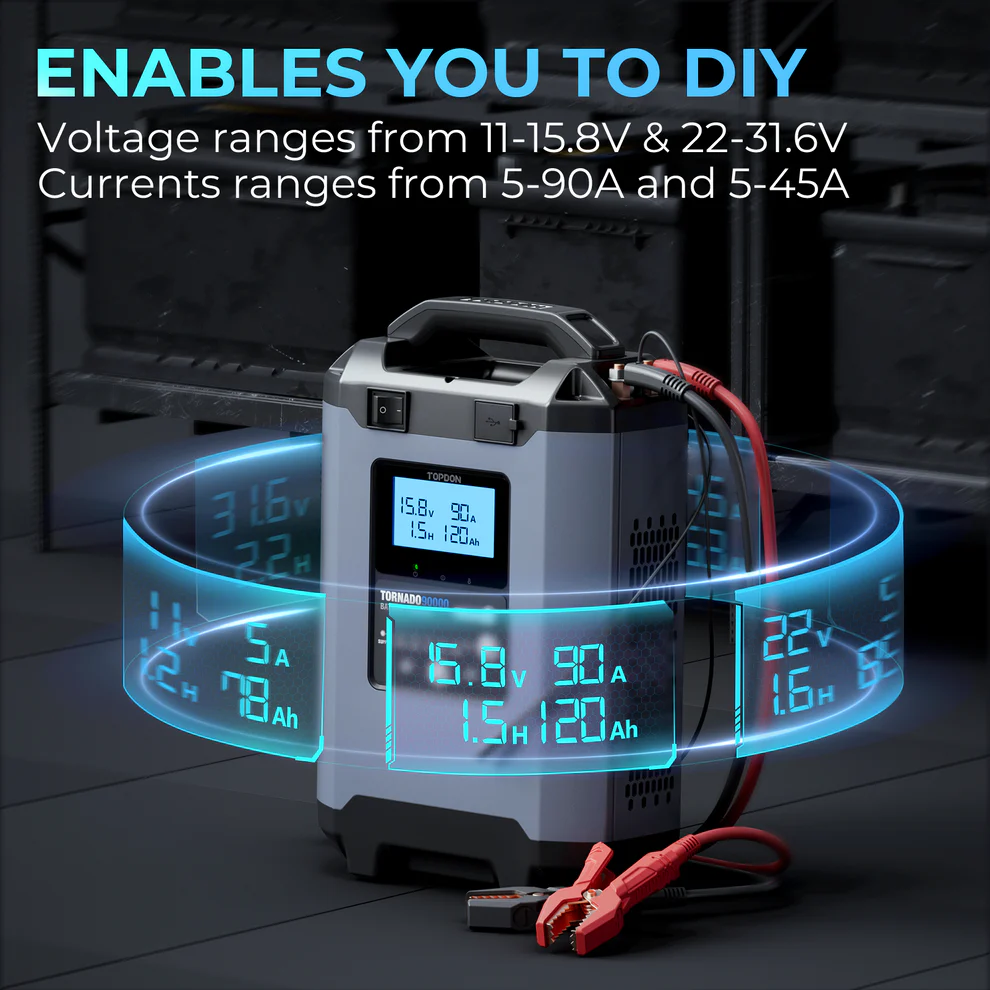

The Tornado90000 offers 6 programmable charging modes to ensure the right current and voltage output at all times. This device also features an electrical current edit, and voltage edit function. The voltage adjustment ranges from 11-15.8V, and 22-31.6V. Corresponding currents are 5-90A and 5-45A.

LARGE POWER Supply

The Tornado90000 can act as a stable power supply for various automotive appliances such as tire inflators, car fridges, and more.

LARGE POWER Supply

The Tornado90000 can act as a stable power supply for various automotive appliances such as tire inflators, car fridges, and more.

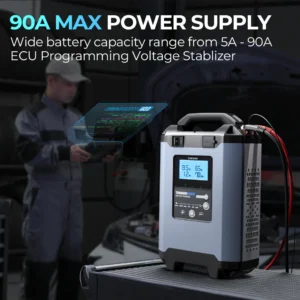

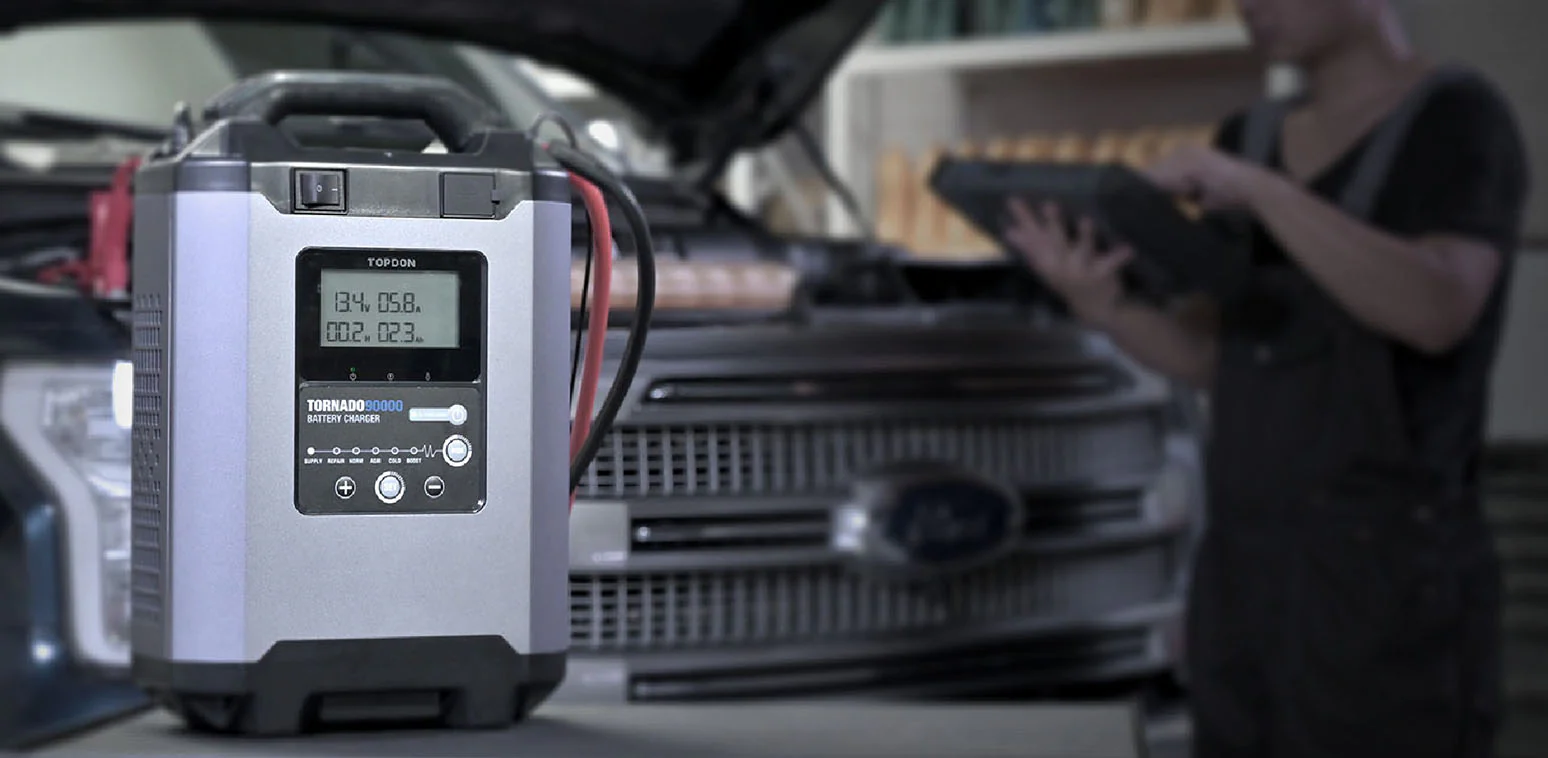

ECU PROGRAMMING VOLTAGE STABILIZER

ECU programming voltage stabilizer can match multiple brands and types of automotive systems.

UNMATCHED COMPATIBILITY

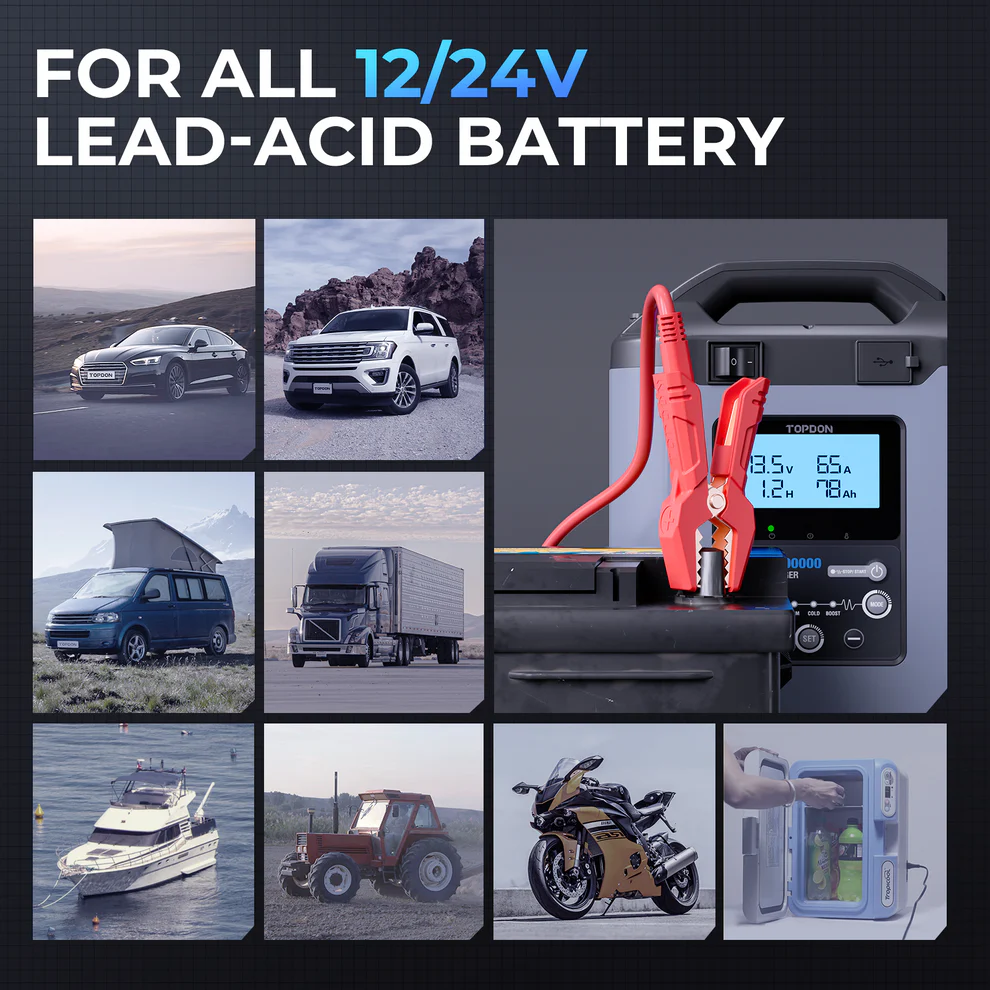

Charge a wide variety of 12V and 24V batteries, such as AGM, WET, GEL, MF, CAL, and EFB batteries. The Tornado90000 is suitable for batteries between 5 and 90 amps.

UNMATCHED COMPATIBILITY

Charge a wide variety of 12V and 24V batteries, such as AGM, WET, GEL, MF, CAL, and EFB batteries. The Tornado90000 is suitable for batteries between 5 and 90 amps.

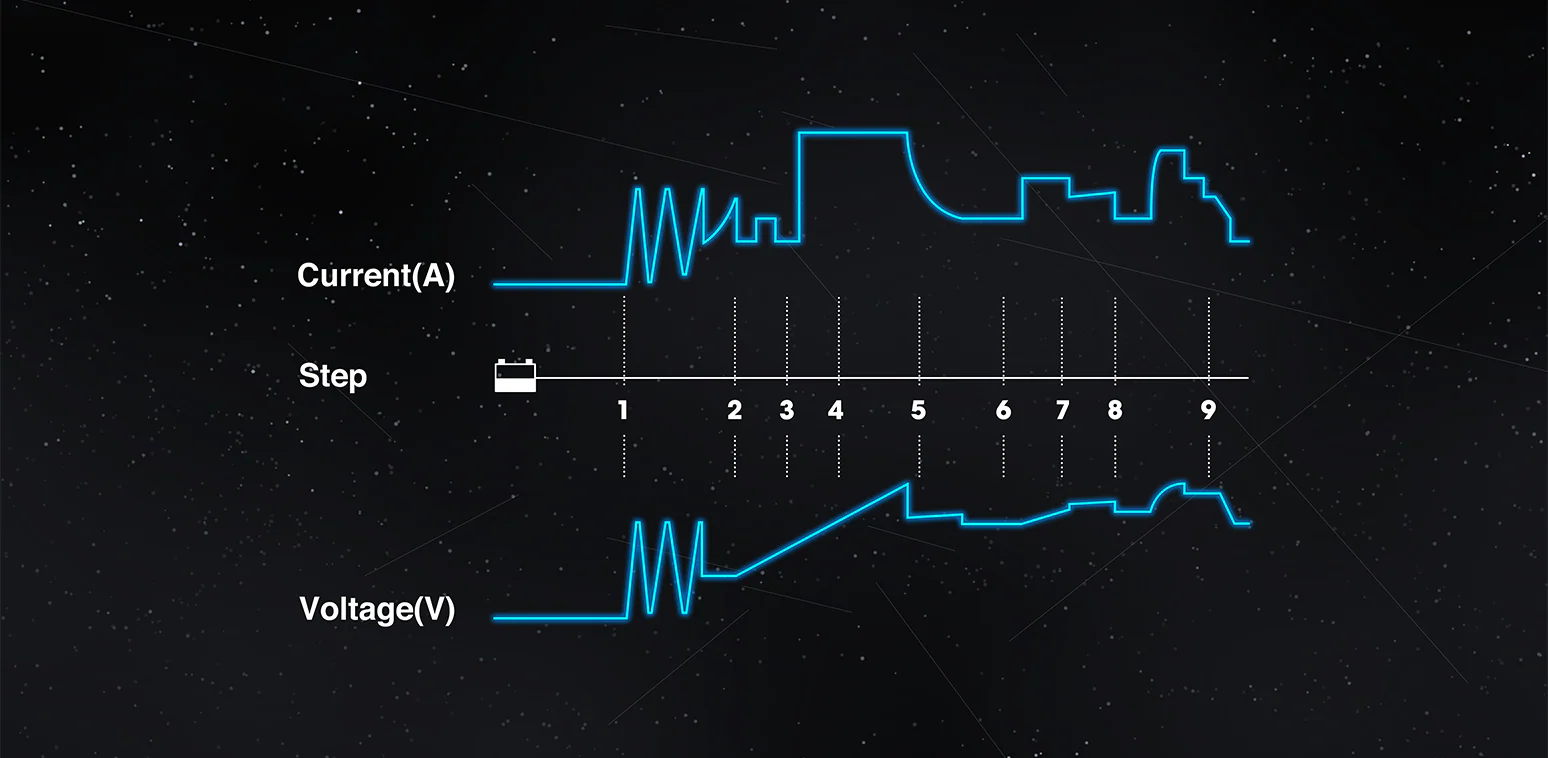

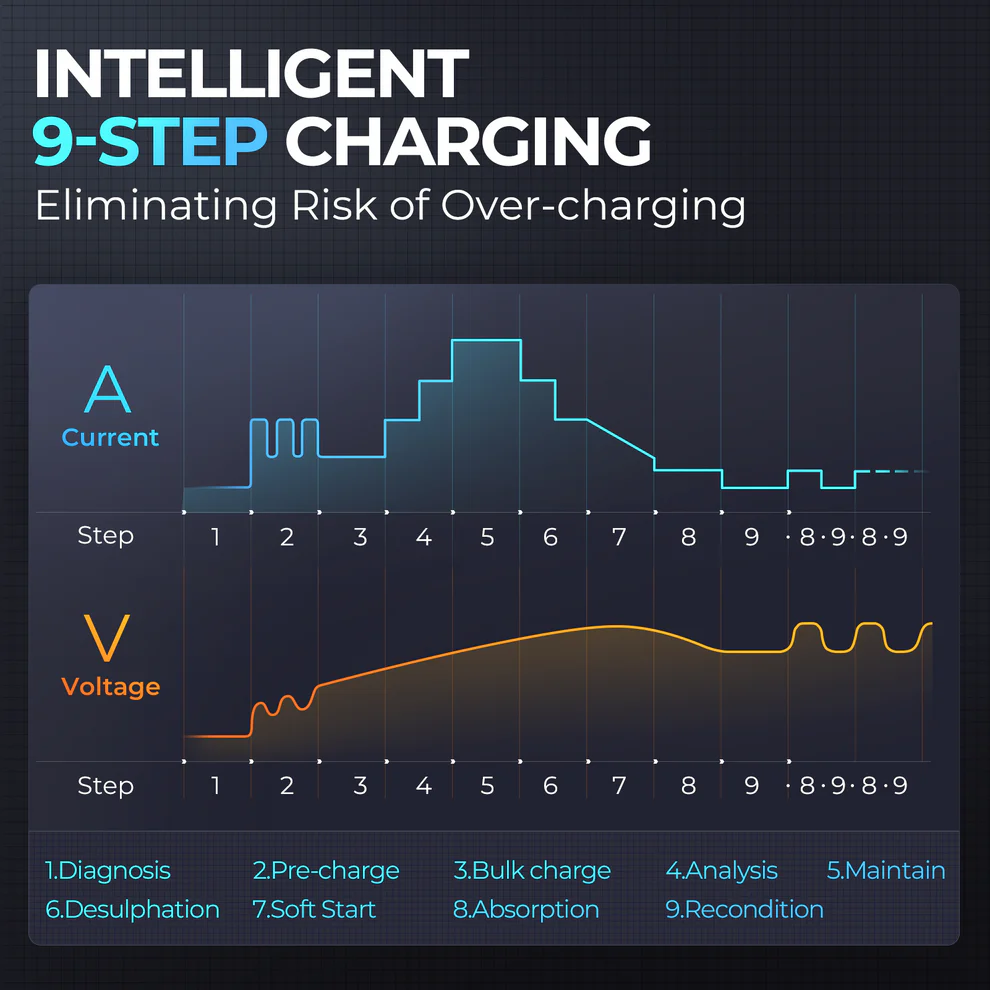

9-STEP SMART CHARGING

Its 9-step smart charging provides strong protection to the battery and the automatic charging and disconnection system eliminates any risk of overcharging.

YOUR BATTERY’S BODYGUARD

With the Tornado90000 you are protected against reverse polarities, reverse charges, short circuits, overheating, and over-voltages.

YOUR BATTERY’S BODYGUARD

With the Tornado90000 you are protected against reverse polarities, reverse charges, short circuits, overheating, and over-voltages.

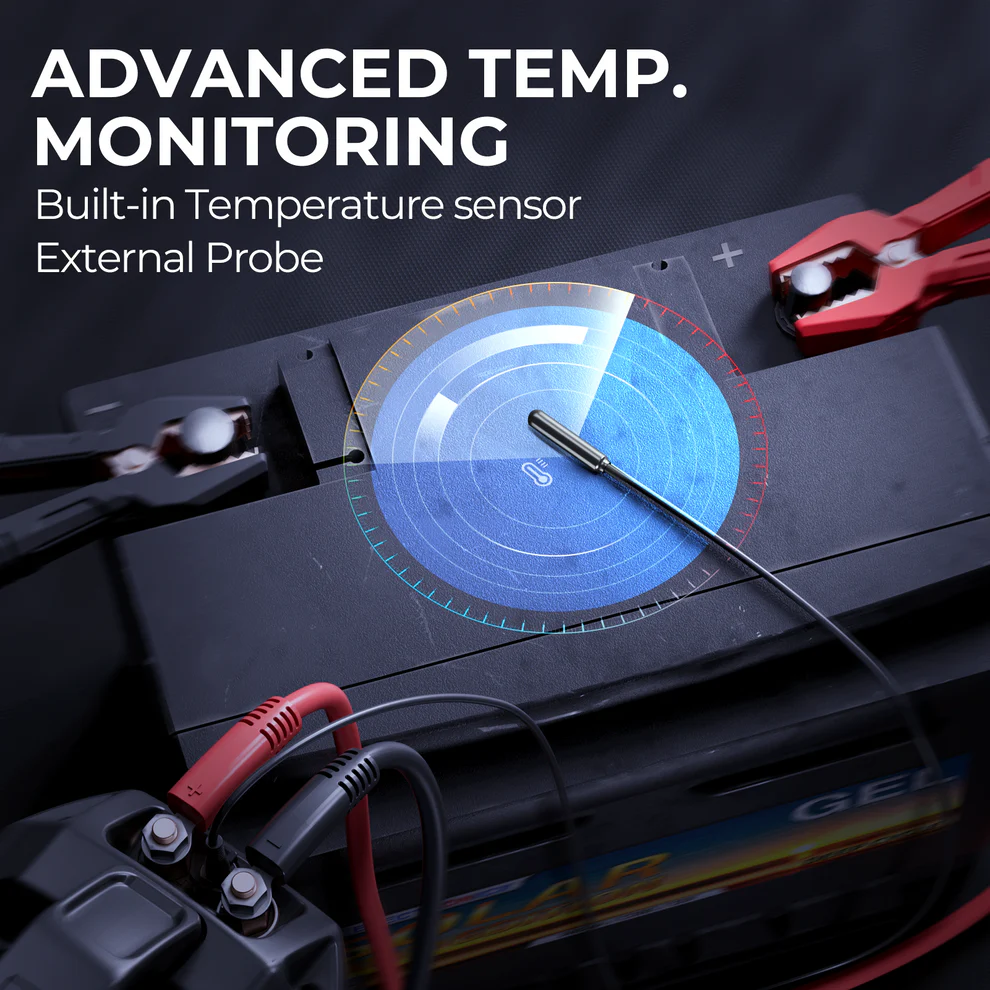

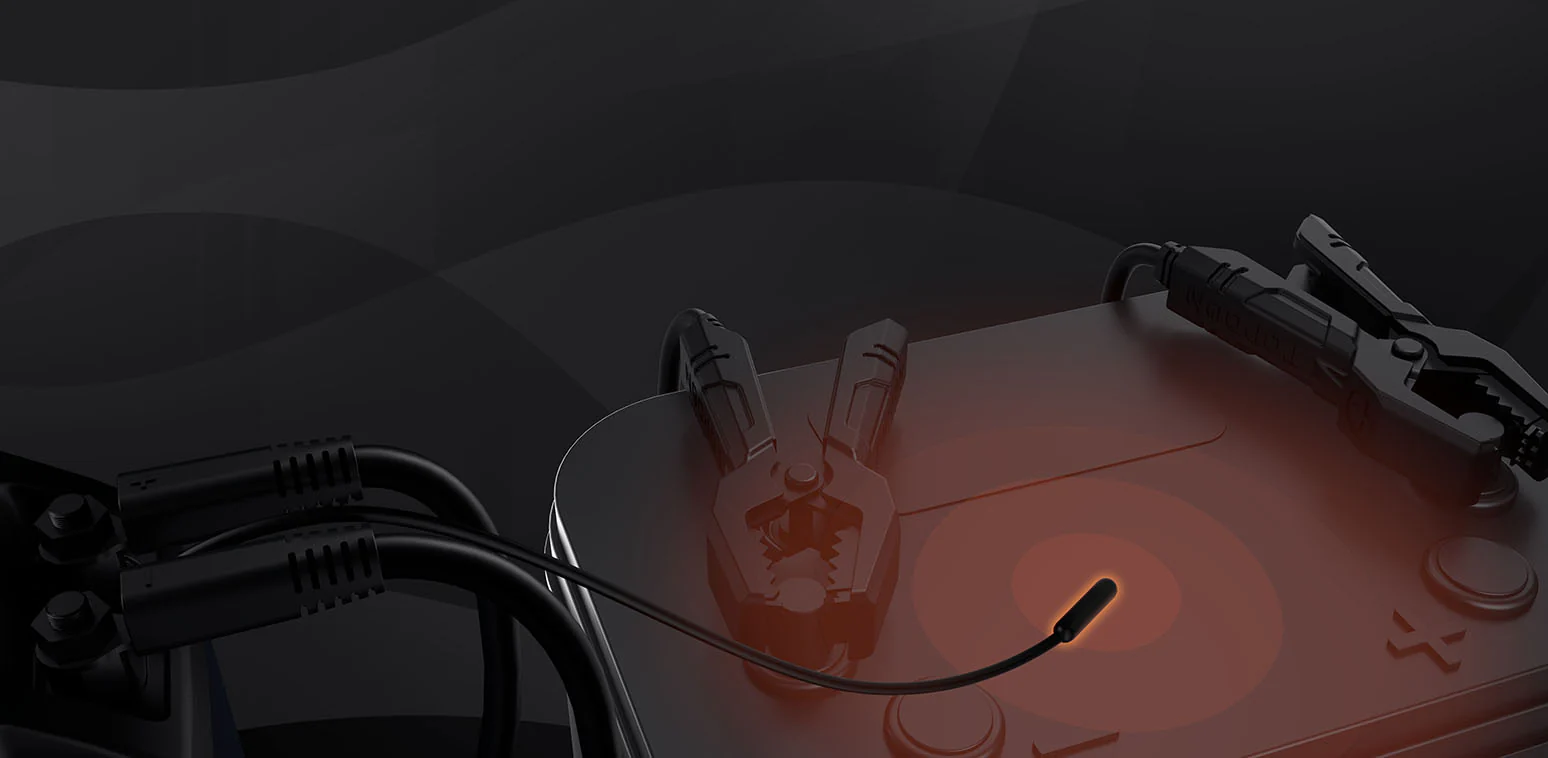

DUAL TEMPERATURE MONITORING FOR SAFETY IN EVERY ELEMENT

The Tornado90000 features a built-in temperature sensor constantly protecting the device being charged. It has a built-in temperature sensor to detect the temperature of the device at all times; External temperature sensing probe to monitor and protect the device being charged.

Specifications

Input Voltage AC	100-120VAC, 50-60Hz
Working Voltage AC	100-120VAC, 50-60Hz
Dead Battery Charge	✓
6V NORM/6V AGM	x
6V Battery Repair	x
12V Battery Repair	✓
24V Battery Repair	✓
12V Supply	✓ (11-15.8V 22-31.6V)
24V Supply	✓
12V Lithium	✓
24V Lithium	✓
APP	x
Efficiency	85% Approx.
Power	1500W Max
Charging Current	12V/10A-90A, 24V/10A-45A
Back Current Drain	< 5mA
Working Temp	14°F to 104°F (-10°C to 40°C)
Storage Temp	-4°F to 167°F (-20°C to 75°C)
Charger Type	9 Step, Smart Charger
Type of Batteries	12V/24V
Battery Chemistries	Wet, Gel, MF, EFB, AGM, CAL, VRLA, Lithium
Battery Capacity	20-2800Ah
Housing Protection	IP20
AC Cable Length (m)	1.8
Clip Cord Length (m)	2.2
Package Dimensions	419.2 x 274.6 x 140 mm (16.50 x 10.81 x 5.51 inches)
