Highlights

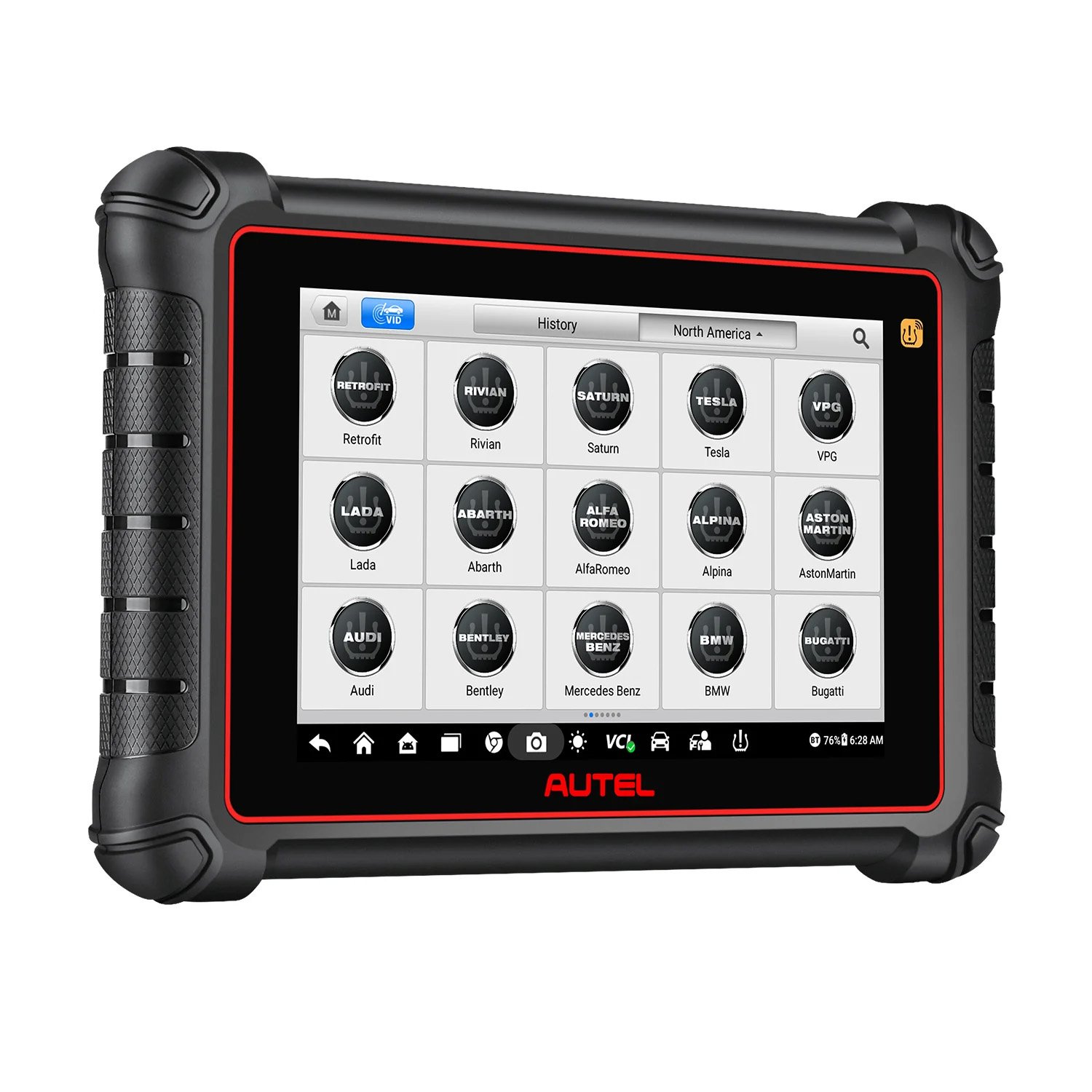

- Extensive vehicle coverage for U.S., Asian, and European vehicle makes
- Exceptional OE-Level system for all electronic systems
- Excellent functions for reading codes, live data, ECU information and performing active test, adapation, and matching, etc.
- Expansive 40-plus menu of service and maintenance tasks
- Features DoIP and CAN FD protocols
- Smart AutoVIN technology for identifying vehicles easily
- Automatic system and software updates with real-time push notifications through the Internet
- Instant remote control tech support anytime and anywhere
- Advanced TPMS diagnostics with DTC description
- TPMS status, one step for complete TPMS health check
- Activate all known TPMS sensors
- Program AUTEL MX-Sensor
- Comprehensive OBD relearn coverage
- On-screen relearn procedure
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
- Supports Pre & Post Scan
Specifications
| Operating System | Android 11 |
| Processor | Quad core Processor(1.8GHz) |
| Memory | 4GB RAM & 64GB ROM |
| Display | 8-inch LCD capacitive touchscreen with 1280×800 resolution |
| Rear Camera | 8 MP |
| Connectivity | USB Type-C |
| USB 2.0 | |
| Wi-Fi | |
| Bluetooth | |
| Mini SD card (supports up to 64GB) | |
| Audio Input/Output | Input: N/A |
| Output: buzzer | |
| Power and Battery | 3.7 V/7700mAh lithium-polymer battery |
| Charges via 5 VDC power supply | |
| Battery Charging Input | 5 V/3 A |
| Operating Temp | 0 to 50°C (32 to 122°F) |
| Storage Temp | -10 to 60°C (14 to 140°F) |
| Protocols | ISO9141-2, ISO14230-2, ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW, SAE-J1850PWM, ISO11898(High-speed, Middle-speed, Low-speed and Single-wire CAN, fault-tolerant CAN) , SAE J2610, GM UART, UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6, DoIP, CANFD |
