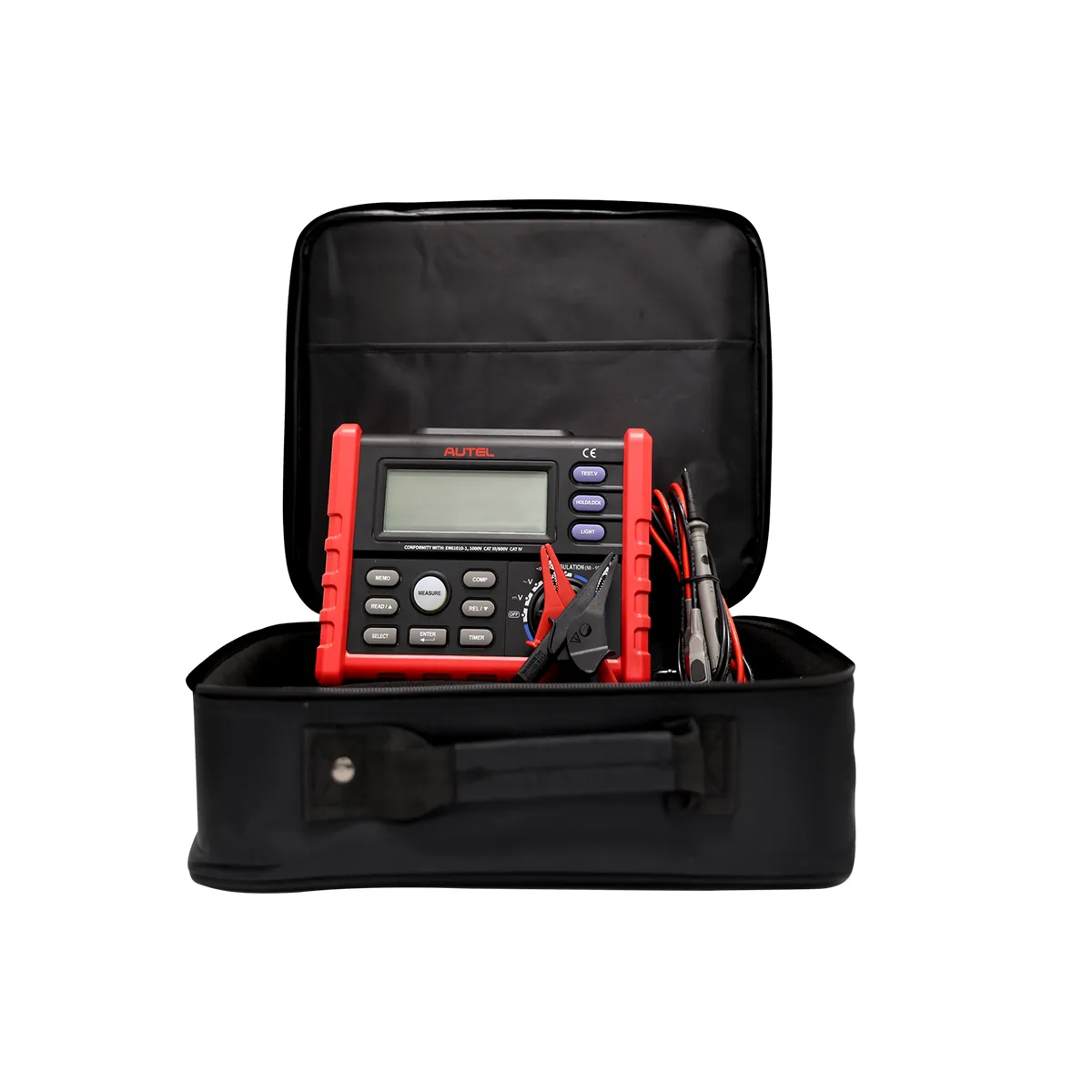

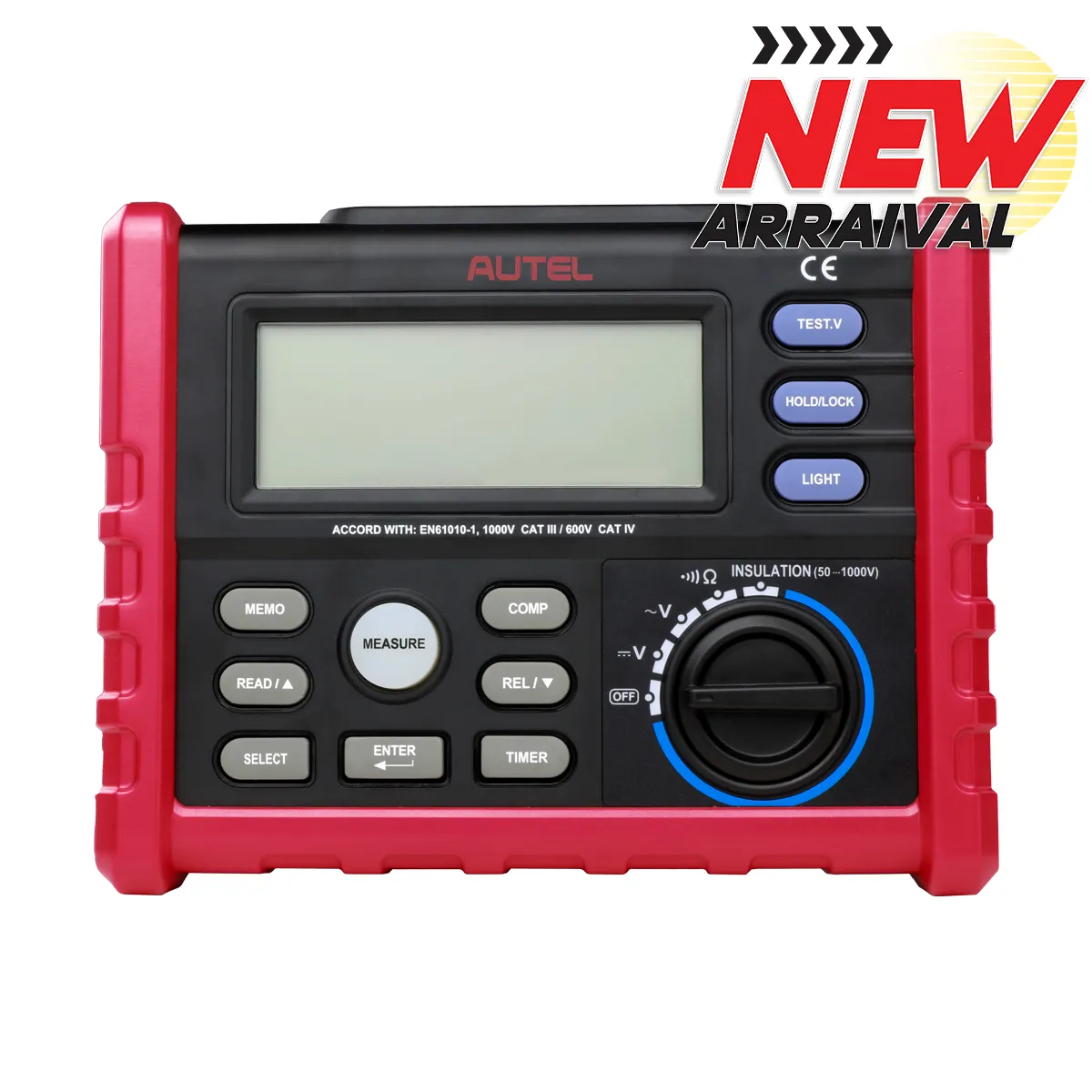

The MaxiEV ITS100 is the ultimate tool for EV technicians working with high-voltage systems. With comprehensive testing capabilities, visualized data output, and full compliance with international safety standards, it is an indispensable addition to any electric vehicle maintenance toolkit.
Key Features
High Voltage Testing
Applies selectable DC voltages (50V, 100V, 250V, 500V, or 1000V) to components or systems.
Measures resulting current flow to detect insulation problems.
Resistance Measurement
Tests insulation resistance before components are loaded into the vehicle.
Identifies damage, deterioration, or contamination in insulation.
Visualized Data Output
Provides clear, visual data for easy interpretation.
Supports informed decision-making during diagnostics and maintenance.
Three Measurement Modes
Relative Mode: Measures deviation from a reference value.
Timely Mode: Captures measurements at specific intervals.
Continuity Mode: Tests continuous current flow for circuits.
Compliance and Safety
Standards Compliance
Meets IEC/EN 61010-1 standards for 1000V CAT III and 600V CAT IV measurements.
Safety Functions
Includes capacitor discharge functionality.
Detects isolation faults or short circuits safely and accurately.
Additional Features
Automatic Power-Off: Conserves battery life.
Warranty: One-year limited warranty for reliable support.
Applications
High Voltage Wiring & Components: Ideal for testing EV high-voltage wiring and components.
Vehicle Maintenance: Essential for routine maintenance and safety inspections.
Isolation Faults: Detects and addresses isolation faults or shorts in EV systems.
Specifications
| Feature | Specification |
|---|---|
| Voltage Levels | 50V, 100V, 250V, 500V, 1000V DC |
| Function | Insulation Resistance Testing |
| Application | EV Components and Systems |
| Data Output | Visualized Data Display |
| Usage | Identifies Damage, Deterioration, Contamination of Insulation |
| Warranty | One-Year Limited Warranty |
