Enhanced All System Diagnostics and Service Functions
- Extensive and current year vehicle coverage for U.S., Asian, and European vehicle makes, access to all modules in all systems
- Enhanced Mode 6 diagnostics, all system AutoScan DTCs detection, reads & clears codes, views live and freezes frame data
- Support 11 service functions: OIL RESET, BREAK BLEEDING, INJECTOR, SAS, THROTTLE, EPB, BMS, TPMS, DPF, AFS Headlamp, A/F
- Support OBDII protocols & all 10 OBDII test modes, perform I/M Readiness/ Emissions testing function

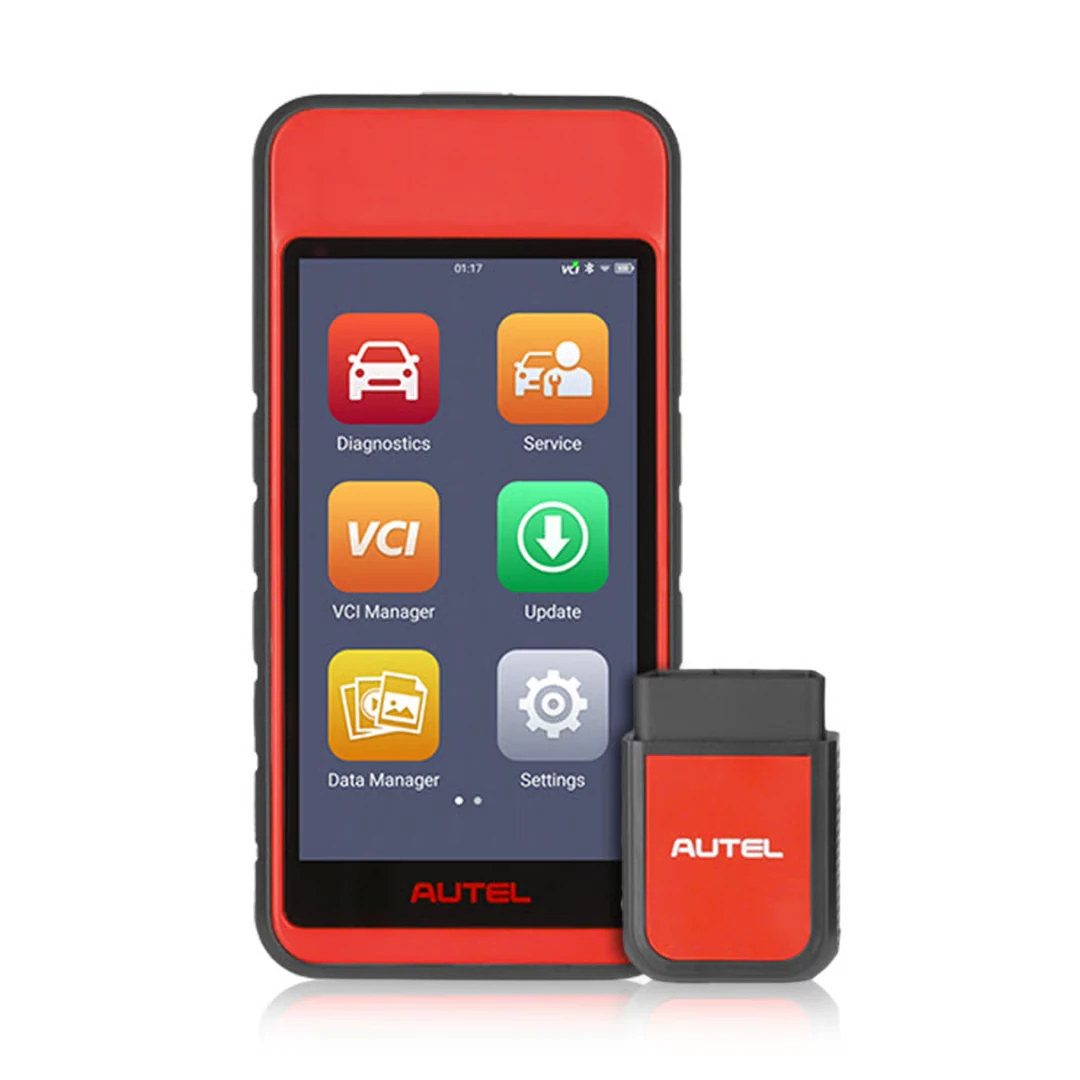

Outstanding Hardware, Faster Operation
- 5.5-inch screen, 64G storage, Android-based platform, deliver user-friendly interface
- 5,000mAh battery, deliver long battery-life

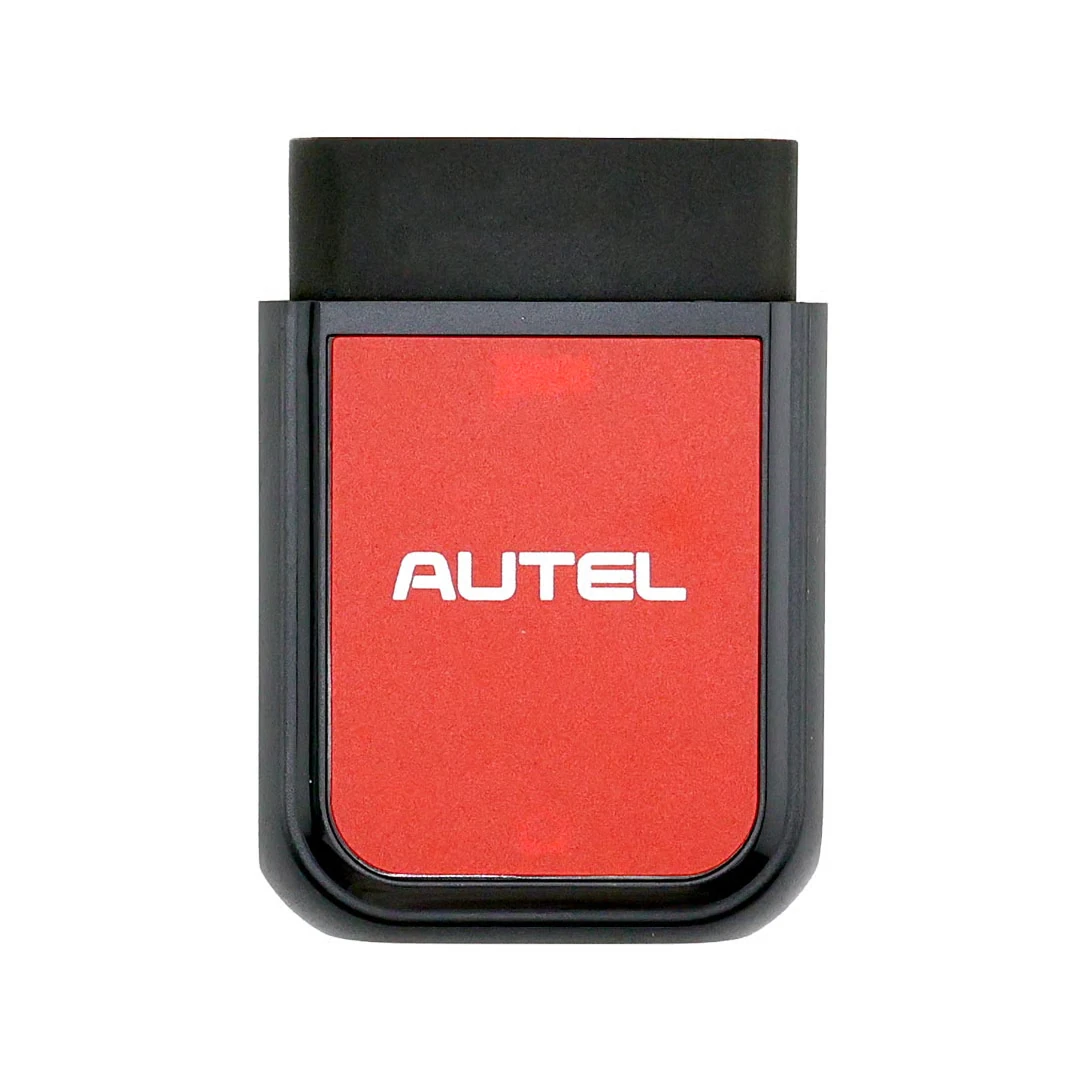

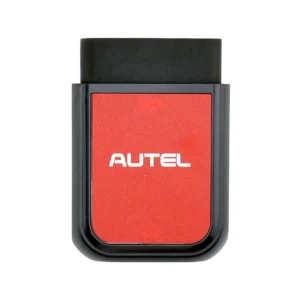

- Bluetooth connectivity of VCI, more convenient in handheld operation scenarios
Advanced, expandable & cost-effective handheld system for DIY automotive maintenance sector
- Support CAN FD communication protocol, compatible with advanced automotive systems
- Access automakers security gateways, such as FCA, SFD, etc.*
- Expandable battery test functions, requires optional MaxiBAS BT506 purchase
- Free lifetime OTA software updates, cost-effective handheld solution
*detailed information of available gateway, please contact local distributors
Specifications
| Hardware | VCI | V150 Lite |
| System | Android 9 | |
| Battery | 5000mAh | |
| Storage | 64GB | |
| Screen | 5.5-inch | |
| Function | Vehicle Coverage | Current year vehicle of Asia, Europe, America, China |
| System Coverage | All | |
| Read/ Erase Code | âś” | |
| Live Data | âś” | |
| Security Gateway | FCA, SFD, etc. | |
| Service | OIL RESET | âś” |
| BREAK BLEEDING | âś” | |
| INJECTOR | âś” | |
| SAS | âś” | |
| THROTTLE | âś” | |
| EPB | âś” | |
| BMS | âś” | |
| TPMS | âś” | |
| DPF | âś” | |
| AFS Headlamp | âś” | |
| A/F | âś” | |
| Extension | Battery Test (purchase BT506) | âś” |
| Communication Protocol | CAN FD | âś” |
| Software | FREE Lifetime Software | lifetime of tool |
